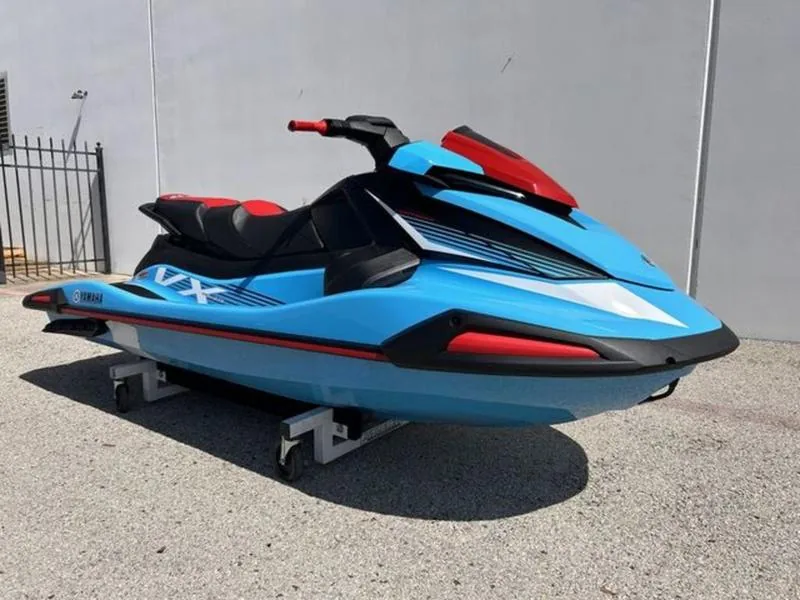

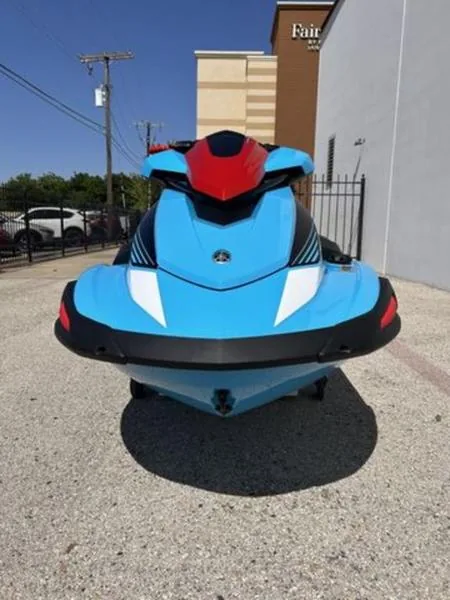

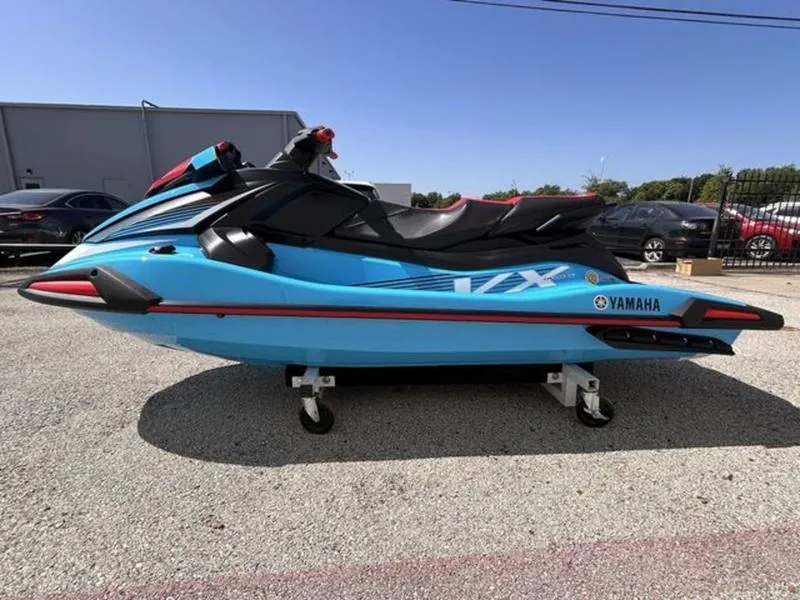

2024 Yamaha VX® Deluxe

Manufacturer Info

THE MOST AFFORDABLE CRAFT IN THE WORLD’S BEST-SELLING SERIES. The 2024 Yamaha VX Deluxe offers class-leading versatility and light-weight performance, with many of the features available in the high-end models within the VX range . If you are looking for a high-quality, lightweight and fuel efficient mid-sized personal watercraft packed with heaps of features, then the VX Deluxe is the WaveRunner model for you . This recreation personal watercraft is designed for endless fun and excitement out on the waves .

PERFORMANCE SPECIFICATIONS

Attribute

Specification

Engine

3-Cylinder, 4-Stroke TR-1 High Output Yamaha Marine Engine

Displacement

1,049 cc

Bore x Stroke

82 mm x 66.2 mm

Compression Ratio

11.0:1

Horsepower

115-150 hp range (estimated)

Top Speed

50+ mph

Acceleration

Quick acceleration with 13% more horsepower than predecessor

Induction System

Naturally aspirated

Cooling System

Low-maintenance Open Loop Cooling

Fuel System

Electronic Fuel Injection (EFI)

Fuel Type

Regular Unleaded

Lubrication System

Dry Sump

Jet Pump

155mm High-Pressure Axial Flow with Stainless Steel Impeller

Impeller

3-blade, Stainless Steel

Transmission

Direct Drive from Engine

Reverse

Yes, via RiDE system

SPEED & PERFORMANCE PROFILE

50+ MPH Top Speed:

The 2024 VX Deluxe delivers exhilarating performance with an estimated top speed of 50+ mph . The TR-1 High Output engine provides 13% more horsepower than its predecessor, delivering quick acceleration, higher top-end speeds, outstanding fuel economy and a more exciting ride .

Customizable Speed Control:

The 4.3-inch Connext Helm Control with multi-color LCD display includes DRIVE Control that allows you to set top speeds at different increments along with other speed settings . This feature is perfect for managing riders of different skill levels or for fuel-efficient cruising.

TR-1 High Output Engine:

The VX Deluxe is powered by Yamaha’s award-winning 1,049cc TR-1 High Output marine engine . This three-cylinder, 4-stroke powerplant delivers:

- 13% more horsepower than its predecessor
- Reductions in weight, size and fuel consumption
- Electronic Fuel Injection for smooth, high power output with low fuel consumption and low exhaust emissions
- Specially designed one-piece cylinder and crankcase assembly provides tremendous engine rigidity that’s lighter and stiffer than two-piece designs

NanoXcel2 Lightweight Hull:

Yamaha’s NanoXcel2 hull and deck material reduces the weight of the watercraft by 25%, delivering improved acceleration, fuel economy, top-end speed and handling . The result is a state-of-the-art watercraft that is significantly lighter, making it quick and nimble, but with balance and maneuverability that truly connects the driver to the machine .

155mm High-Pressure Pump:

The VX pump design is one of the most efficient pump configurations ever, increasing stream velocity and thrust while decreasing cavitation and prop spin . The stainless steel impeller provides enhanced durability and performance.

RiDE Dual Control System:

Yamaha’s patented RiDE (Reverse with Intuitive Deceleration Electronics) system is the world’s first dual throttle handlebar control system, that makes handling easy, fun and intuitive . Pull the right lever to accelerate and the left lever to decelerate and for reverse. Release both levers, or in any combination, and the system reacts with precise control .

TECHNOLOGY & FEATURES

4.3-inch Connext Helm Control:

The VX Series features modern dash instrumentation including Yamaha’s 4.3-inch Connext Helm Control with multi-color LCD display . A touchpad control mounted next to the steering column provides convenient access to the Connext system’s many functions . Features include:

- Customizable speed displays
- PIN code security system that eliminates the need for an external remote fob
- DRIVE Control that allows you to set top speeds at different increments

Cruise Assist / No Wake Mode:

Yamaha’s exclusive Cruise Assist allows the driver to set and hold a particular speed while maintaining a comfortable riding position . Once the speed is set, the driver can increase or decrease the speed through the simple push of a button . The No Wake Mode moves the engine’s RPMs to an optimal speed, approximately 5 mph, for efficiently navigating through no-wake zones .

Multi-Mount System:

Every model in the VX Series is compatible with an innovative multi-mount system that allows riders to personalize their ride with accessories like speakers, GPS systems, cameras and more . Accessories sold separately.

Deck Design & Ergonomics:

The VX Deluxe features improved rider ergonomics with:

- Deeper and wider self-draining footwells to prevent water pooling
- Seat profile that is 4 centimeters narrower than its predecessor, improving knee grip and overall comfort
- Two-piece sports seat for single, two or three-up riding

STORAGE & CAPACITIES

Feature

Specification

Total Storage Capacity

114 L (30.1 gal)

Bow Storage

Large compartment with space for dedicated cooler bag

Watertight Glove Box

16.5L of usable storage with LED lighting, dedicated Smartphone area, USB and 12V power outlets

Under-Seat Storage

Water resistant storage

Fuel Capacity

70 L (18.5 gal)

Rider Capacity

3 persons

Large Rear Platform:
Roomy and comfortable, the large rear platform is the ideal place for soaking up the surroundings, getting in and out of the water or simply doing nothing at all . The decking platform is fitted with Hydro-Turf mats for optimum looks, grip and comfort .

Reboarding Step:
The VX Deluxe includes twin reboarding handles and an extra-deep ergonomically designed soft-touch reboarding step, making climbing back on board extra easy and safe .

DIMENSIONS

Measurement

Specification

Length

132.7 in (3,370 mm)

Width

48.8 in (1,240 mm)

Height

47.2 in (1,200 mm)

Dry Weight

683 lb (310 kg)

Hull Material

NanoXcel / NanoXcel2

Hull Type

Progressive, Stepped Draft V-Hull

ADDITIONAL FEATURES

Integrated Dual Mirrors:
Incorporating Yamaha’s trademark compact and edgy design styling, the integrated mirrors not only look good but aid rider visual awareness and overall safety .

Tow Hook:
The strong tow hook allows the craft to securely tow an inflatable tube, wake boarder or skier for additional on-water thrills .

Open Loop Cooling System:
All Yamaha WaveRunners utilize an open loop cooling system, as used by 99% of marine manufacturers . This system is proven to be the most effective, reliable and maintenance-free solution for marine environments .

Visibility Spout:
Yamaha’s trademarked water spout from the rear of the craft improves the watercraft’s conspicuity .

Automatic Bilge System:
Automatic siphon / electric pump bilge system keeps the engine clear of water .

WARRANTY

Coverage

Term

Factory Warranty

12-month limited warranty
