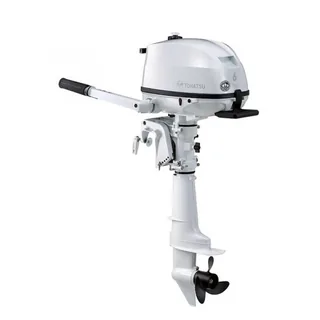

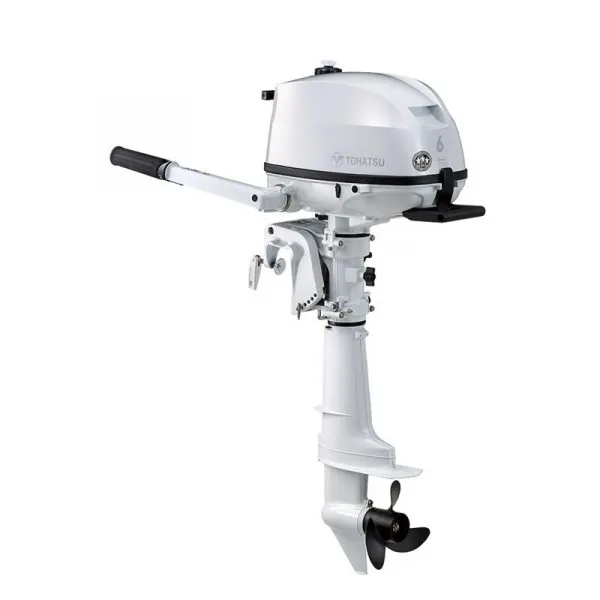

2024 Tohatsu 6 HP MFS6DWDS Outboard

Specifications

MODEL MFS6DWDS

MODEL YEAR 2024

SKU MFS6DWDS

WEIGHT 58.0 lb

MANUFACTURER Tohatsu

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 6hp

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 123 cc (7.5 cubic inches)

BORE AND STROKE 59 x 45 mm (2.32 x 1.77 inches)

FULL THROTTLE RPM RANGE 5,000-6,000 RPM

IGNITION SYSTEM Digital CD Ignition

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE .3 US Gallon (1.15 Liter) Integral Fuel Tank

OIL TYPE SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ)

OIL CAPACITY 15 fl. oz. (450 ml)

LUBRICATION Wet Sump

ALTERNATOR Optional 12V 60W 5A (installation required)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral-Reverse (front mount shifter)

PROPELLER 7.7″ Dia. X 8.0″ Pitch 3-Blade Aluminum

What’s In The Box

- Integral Fuel Tank (0.3 gal)
- Aluminum Propeller
- Owner’s Manual & Tool Kit
- Tohatsu 5-Year Warranty
