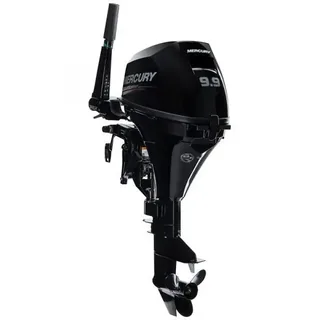

2024 Mercury 9.9 HP MH Outboard Motor

SPECS

MODEL Mercury Outboard 9.9MH

MODEL YEAR 2024

SKU ME9.9MH-1F10201BK

WEIGHT 84.0 lb

MANUFACTURER Mercury Marine

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 9.9 HP

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 12.8 ci (208 cc)

BORE AND STROKE 2.16 x 1.73 in. (55 x 44 mm)

FULL THROTTLE RPM RANGE 5,000 – 6,000

IGNITION SYSTEM CDI with electronic spark advance

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 27 fl. Oz. (800 ml)

LUBRICATION Trochoid Pump

ALTERNATOR Optional 12V 76W 6A (installation required)

COOLING SYSTEM Water-cooled with thermostat

SALTWATER RATED Yes

GEAR RATIO 2.08:1

GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)

PROPELLER 8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum

IN THE BOX

- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
