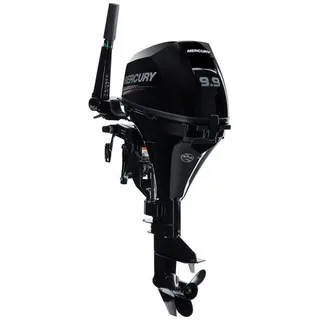

2024 Mercury 9.9 HP EH Outboard Motor

SPECS

MODEL Mercury Outboard 9.9EH

MODEL YEAR 2024

SKU 1F10301BK

WEIGHT 91.0 lb

MANUFACTURER Mercury Marine

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 9.9 HP

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Electric

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 208 cc (12.8 cubic inches)

BORE AND STROKE 55 x 44 mm (2.16 x 1.73 inches)

FULL THROTTLE RPM RANGE 5000-6000

IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 27 fl. Oz. (800 ml)

LUBRICATION Trochoid Pump

ALTERNATOR 12V 76W 6A (standard on electric start models)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.08:1

GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)

PROPELLER 8.5″ Diameter X 9.0″ Pitch 3-Blade Aluminum

IN THE BOX

- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
