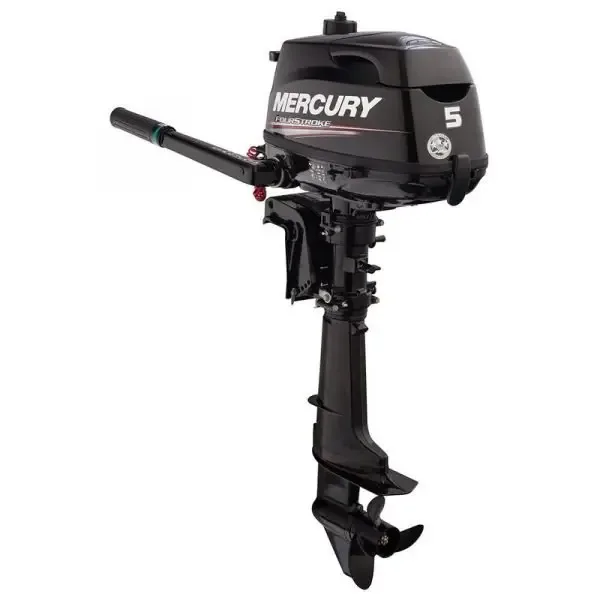

2024 Mercury 5 HP MXLH Outboard Motor

SPECS

MODEL Mercury Outboard 5MXLH

MODEL YEAR 2024

SKU 1F05221KK

WEIGHT 59.0 lb

MANUFACTURER Mercury Marine

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 5 HP

SHAFT LENGTH 25″ (Extra Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 123 cc (7.5 cubic inches)

BORE AND STROKE 59 x 45 mm (2.32 x 1.77 inches)

FULL THROTTLE RPM RANGE 4500-5500

IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 0.3 US Gallon (1.15 liter)

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 15 fl. Oz. (450 ml)

LUBRICATION Trochoid Pump

ALTERNATOR Optional 12V 50W 4A (installation required)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral-Reverse (forward mounted shift lever)

PROPELLER 7.7″ Diameter X 8.0″ Pitch 3-Blade Aluminum

IN THE BOX

- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 3-Stroke Oil
- Tool Kit
