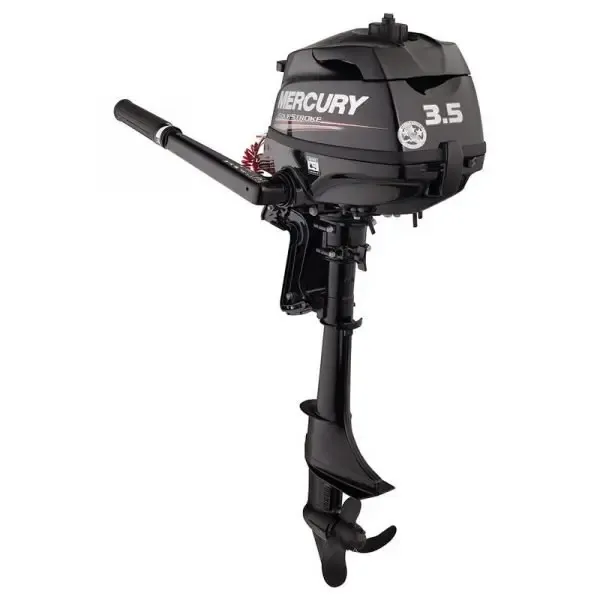

2024 Mercury 3.5 HP MLH Outboard Motor

SPECS

MODEL Mercury 3.5MLH

MODEL YEAR 2024

SKU ME3.5MLH-1F03211KK

WEIGHT 41.0 lb

MANUFACTURER Mercury Marine

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 3.5 HP

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 5.2/85

BORE AND STROKE 2.16 x 1.42 in

FULL THROTTLE RPM RANGE 5000-6000

IGNITION SYSTEM CDI w/electric spark advance

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 0.3 US Gallon (0.95 liter)

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 10 fl. Oz. (300 ml)

LUBRICATION Splash

ALTERNATOR Not available on 3.5hp models (4hp & up only)

COOLING SYSTEM Water-cooled w/thermostat

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral w/ 360° Steering for Reverse

PROPELLER 7.375″ Diameter x 6.0″ Pitch 3-Blade Composite

IN THE BOX

- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Propeller (Composite)
- Mercury 4-Stroke Oil
- Tool Kit
