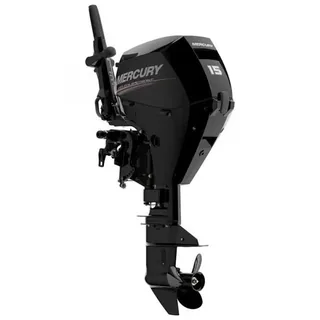

2024 Mercury 15 HP ELH EFI Outboard Motor

SPECS

MODEL Mercury Outboard 15ELH

MODEL YEAR 2024

SKU 1A15311LK

WEIGHT 114.0 lb

MANUFACTURER Mercury Marine

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 15 HP

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Electric

TRIM & TILT Manual

FUEL DELIVERY Electronic Fuel Injection (EFI)

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 333 cc (20.3 cubic inches)

BORE AND STROKE 61 mm x 57 mm (2.402 in. x 2.244 in.)

FULL THROTTLE RPM RANGE 5000-6000

IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 1 Quart (1000 ml)

LUBRICATION Trochoid Pump

ALTERNATOR 12V 138W 12A (standard on electric start models)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)

PROPELLER 9.2″ Diameter X 9.1″ Pitch 3-Blade Aluminum

IN THE BOX

- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
