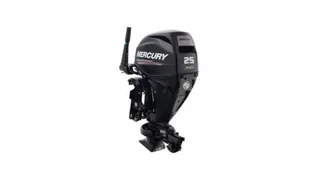

2023 Mercury 25 HP Jet EFI 526cc L3

Mercury Jet Outboards are designed with the power and the weight to cover any shallow-water jet boat application. Our FourStroke jet outboards are electronic fuel injected, with a range from 25 to 40 horsepower.

SPECIFICATIONS

HP: 25 HP (18.4 kW)
Displacement: 32.1 CID (526 cc)
Engine type: Inline 3
Full throttle: 5000-5500
Fuel induction system: 2 valves per cylinder, single overhead cam (SOHC)
Alternator: 15 amp (186 watt)
Recommended fuel: 87 octane / up to 10% ethanol
Recommended oil: Mercury FourStroke Oil 10W-30
Engine protection operator warning system: Low oil pressure; Over-rev; Overheat; Sensor failure
Starting: Electric (turn-key); Manual
Steering: Remote; Tiller
Shaft length: 15″ (381 mm)
Dry weight: 186 lbs (84 kg)
CARB star rating: 3
Bore and stroke: 2.40 x 2.36″ (61 x 60 mm)
Ignition: CDI w/electronic spark advance
Fuel system: Electronic Fuel Injection (EFI)
Gearcase options: Jet Drive
Trim system: Gas assist
Color: Phantom Black

KEY FEATURES

Navigate Shallow Water: Mercury; Jet Outboards are specifically designed to pilot boats in shallow waters where propeller-driven hulls are unable to operate. Because there’s no lower unit extending below the hull, the jet drive permits passage over obstacles that would restrict access to a propeller-driven outboard boat.
FourStroke Jet Outboards: Mercury; Jet Outboards are designed with the power and the weight to cover any shallow-water jet boat application. Our FourStroke jet outboards are electronic fuel injected.

ENGINE

Engine Type
Inline 3

Bore x Stroke
2.40 x 2.36 in.(61 x 60 mm)

Displacement
32.1 cu. in. (995 cc)

Starting
Electric (turn-key); Manual

DIMENSIONS

Shaft Length
15 in. (381 mm)

Weight
186 lb. (84 kg)

GENERAL

Trim Method
Gas assist

Propshaft Horsepower
25 HP (18.4 kW)

Fuel Induction
2 valves per cylinder, single overhead cam (SOHC), Electronic Fuel Injection (EFI)

Alternator
15 Amp (186 W)

Steering
Remote; Tiller
