2020 MERCURY 6 HP 6MLH OUTBOARD MOTOR

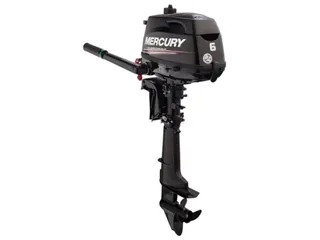

2020 Mercury 6 HP 6MLH Outboard Motor
Truly a portable outboard, the 6 HP Mercury weighs only 58 lbs and comes with an integrated gas tank. the Mercury 6 hp Model 6MLH is equipped with the 20 inch long shaft, tiller steering and manual rope start. Standard features of this single cylinder outboard engine include forward, neutral and reverse shift, and access for an external gas tank.

Compact and Lightweight
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes
Forward-Neutral-Reverse Gear Shift
Adjustable Steering Tension Control
Forward Mounted Gear Shift Selector
Twist-Grip Throttle with Tension Control
Integrated Carry Handle
Thermostat Controlled Water Cooling
Shallow Water Drive; 6 Trim Positions
Quiet Through-Propeller-Hub Exhaust
1.15 Liter (.30 Gallon) Integral Fuel Tank
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

MODEL
6MLH

MODEL YEAR
2020

SKU
6MLH-20

WEIGHT
58.0 lb

MANUFACTURER
Mercury

COUNTRY OF MANUFACTURE
Japan

HORSEPOWER
6hp

SHAFT LENGTH
20″ (Long)

STEERING
Tiller

STARTING
Manual

TRIM & TILT
Manual

FUEL DELIVERY
Carburetor

FUEL TANK
Internal

CYLINDER(S)
1

DISPLACEMENT
7.5/123

BORE AND STROKE
2.32 x 1.77

FULL THROTTLE RPM RANGE
5000-6000

IGNITION SYSTEM
CDI w/electric spark advance

INDUCTION SCAVENGING
OHV

VALVES PER CYLINDER
2

FUEL TYPE
87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE
0.3 US Gallon (1.15 liter)

OIL TYPE
Mercury 4-Stroke Outboard Oil

OIL CAPACITY
450 mL / 15 oz

LUBRICATION
Wet sump

ALTERNATOR
Optional 12V 50W 4A (installation required)

COOLING SYSTEM
Water-cooled w/thermostat

SALTWATER RATED
Yes

GEAR RATIO
2.15:1

GEAR SHIFT
Forward-Neutral-Reverse (forward mounted shift lever)

PROPELLER
7.7″ Diameter X 8.0″ Pitch 3-Blade Aluminum
