2020 MERCURY 4 HP 4MH OUTBOARD MOTOR

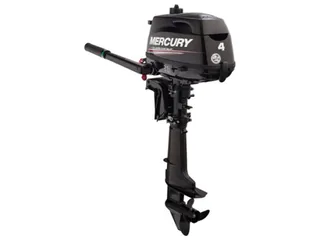

2020 Mercury 4 HP 4MH Outboard Motor
The Mercury 4hp outboard motor models are perfect for small fishing boats, small t sized inflatables and sailboat auxiliary power. The Mercury 4 HP outboard engine model # 4MH is compact and lightweight and comes equipped with the short 15 inch shaft, manual start, tiller steering and full forward-neutral-reverse gears with twist grip throttle, Mercury 4hp models feature an integrated 1 liter fuel tank for real portability. External tank connection is standard which makes adding an external fuel tank and line quick and easy.

Compact and Lightweight
Digital CD Ignition with Spark Advance
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes
Forward-Neutral-Reverse Gear Shift
Adjustable Steering Tension Control
Forward Mounted Gear Shift Selector
Twist-Grip Throttle with Tension Control
Integrated Carry Handle
Thermostat Controlled Water Cooling
Shallow Water Drive; 6 Trim Positions
Quiet Through-Propeller-Hub Exhaust
1.15 Liter (.30 Gallon) Integral Fuel Tank
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

MODEL
4MH

MODEL YEAR
2019

SKU
4MH-19

WEIGHT
55.0 lb

MANUFACTURER
Mercury

COUNTRY OF MANUFACTURE
Japan

HORSEPOWER
4hp

SHAFT LENGTH
15″ (Short)

STEERING
Tiller

STARTING
Manual

TRIM & TILT
Manual

FUEL DELIVERY
Carburetor

FUEL TANK
Internal

CYLINDER(S)
1

DISPLACEMENT
7.5/123

BORE AND STROKE
2.32 x 1.77

FULL THROTTLE RPM RANGE
4500-5500

IGNITION SYSTEM
CDI

INDUCTION SCAVENGING
OHV

VALVES PER CYLINDER
2

FUEL TYPE
87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE
0.3 US Gallon (1.15 liter)

OIL TYPE
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY
15 fl. Oz. (450 ml)

LUBRICATION
Pressurized wet sump

ALTERNATOR
Optional 12V 50W 4A (installation required)

COOLING SYSTEM
Water-cooled w/thermostat

SALTWATER RATED
Yes

GEAR RATIO
2.15:1

GEAR SHIFT
Forward-Neutral-Reverse (forward mounted shift lever)

PROPELLER
7.7″ Diameter X 7.0″ Pitch 3-Blade Aluminum
