2020 MERCURY 3.5 HP 3.5MH OUTBOARD MOTOR

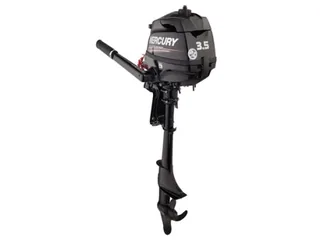

2020 Mercury 3.5 HP 3.5MH Outboard Motor
The Mercury 3.5hp outboard motor features a larger carburetor for increased performance features that set it apart from other outboards in the same class. The Mercury 3.5 outboard engine is a great choice of power for canoes, small tenders and inflatables boats.. At just 41 lbs, Mercury designed the 3.5 HP (3 5 HP) outboard for real portability. The ergonomic carry handle evenly balances the engine for easy transporting. The Mercury 3.5 HP outboard model # 3.5MH is equipped with the 15 inch short shaft, tiller steering and manual start.

Compact and Lightweight
Digital CD Ignition System
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes
Forward-Neutral Gear Shift
360° Steering w/ Tension Feature
Twist-Grip Throttle with Tension Control
Integrated Carry Handle
Thermostat Controlled Water Cooling
Visual Oil Level Indicator
Over-Rev Protection
4 Trim Level Positions
Below-The-Water Exhaust
1.0 Liter (.30 Gallon) Integral Fuel Tank
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

MODEL
3.5MH

MODEL YEAR
2020

SKU
3.5MH-20

WEIGHT
41.0 lb

MANUFACTURER
Mercury

COUNTRY OF MANUFACTURE
Japan

HORSEPOWER
3.5hp

SHAFT LENGTH
15″ (Short)

STEERING
Tiller

STARTING
Manual

TRIM & TILT
Manual

FUEL DELIVERY
Carburetor

FUEL TANK
Internal

CYLINDER(S)
1

DISPLACEMENT
5.2/85

BORE AND STROKE
2.16 x 1.42 in

FULL THROTTLE RPM RANGE
5000-6000

IGNITION SYSTEM
CDI w/electric spark advance

INDUCTION SCAVENGING
OHV

VALVES PER CYLINDER
2

FUEL TYPE
87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE
0.3 US Gallon (0.95 liter)

OIL TYPE
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY
10 fl. Oz. (300 ml)

LUBRICATION
Slinger Splashing System

ALTERNATOR
Not available on 3.5hp models (4hp & up only)

COOLING SYSTEM
Water-cooled w/thermostat

SALTWATER RATED
Yes

GEAR RATIO
2.15:1

GEAR SHIFT
Forward-Neutral w/ 360° Steering for Reverse

PROPELLER
7.4″ Diameter x 7.0″ Pitch 3-Blade Composite
