2020 MERCURY 20 HP EFI 20ELH OUTBOARD MOTOR

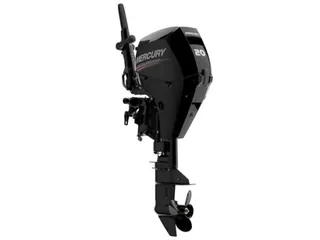

2020 Mercury 20 HP EFI 20ELH Outboard Motor
The Mercury 20 HP EFI outboard motor model 20ELH comes with the convenient features you want: Electric start motor, 20 inch long shaft, multi-function tiller handle, Electronic Fuel Injection, heavy duty transom bracket, and vibration absorbing mounts. The intake manifold design provides fast acceleration, while the large displacement and prop provide planes quickly planes your boat. Between the two, the 114 lb Mercury 20 HP is going to get you where you need to be faster. Mercury Marine Outboards are legendary for reliability and the Mercury 3 year factory warranty make this outboard motor an affordable engine.

Large Displacement Powerhead (351cc)
Electric Start + 12V 138W 12A Alternator
Thru-Cowl Backup Manual Start
Digital CD Ignition with Spark Advance
Tuned Intake for Quick Acceleration
High Grade Marine Alloy Construction
Stainless Steel Water Pump Housing
Zinc Coated Water Passages
Rated for Saltwater Use
Sacrificial Zinc Anodes and Trim Tab
Tiller Integrated F-N-R Gear Shifting
Adjustable Steering Tension Control
Twist-Grip Throttle with Tension Control
Thermostat Controlled Water Cooling
Auto Ratchet Tilt (6 manual trim positions)
Shallow Water Drive
Quiet Through-Propeller-Hub Exhaust
“Wishbone” Mount for Reduced Vibration
3.2 Gallon Fuel Tank and Fuel Line
Easy Maintenance Canister Oil Filter
Start-In-Gear Protection
Low Oil Pressure Warning Indicator
ESG Over-Rev Protection
Safety Lanyard Stop Switch
Owner’s Manual
Mercury Marine 3-Year Warranty

MODEL
20ELH

MODEL YEAR
2020

SKU
20ELH-20EFI

WEIGHT
114.0 lb

MANUFACTURER
Mercury

COUNTRY OF MANUFACTURE
Japan

HORSEPOWER
20hp

SHAFT LENGTH
20″ (Long)

STEERING
Tiller

STARTING
Electric

TRIM & TILT
Manual

FUEL DELIVERY
EFI

FUEL TANK
External

CYLINDER(S)
2

DISPLACEMENT
333 cc (20.3 cubic inches)

BORE AND STROKE
61 mm x 57 mm (2.402 in. x 2.244 in.)

FULL THROTTLE RPM RANGE
5400-6100

IGNITION SYSTEM
Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
2

FUEL TYPE
87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE
3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE
SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY
1 Quart (1000 ml)

LUBRICATION
Trochoid Pump

ALTERNATOR
12V 138W 12A (standard on electric start models)

COOLING SYSTEM
Water-Cooled, Thermostatically Controlled

SALTWATER RATED
Yes

GEAR RATIO
2.15:1

GEAR SHIFT
Forward-Neutral-Reverse (shift in tiller handle)

PROPELLER
9.2″ Diameter X 9.1″ Pitch 3-Blade Aluminum
