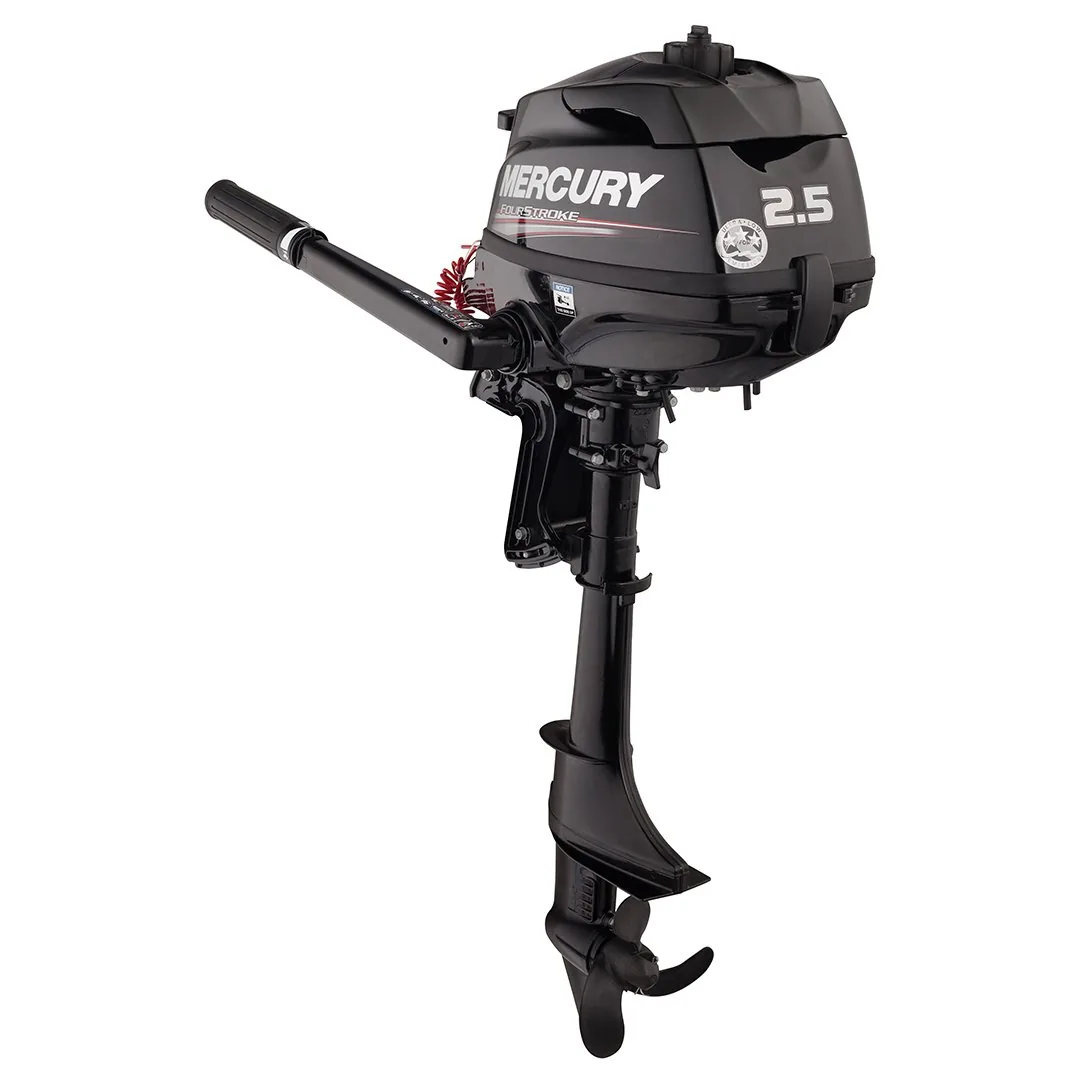

2020 Mercury 2.5 HP Outboard Motor

PRODUCT DESCRIPTION

The 38 lb. Mercury 2.5 HP outboard motor delivers affordable, portable power. The 2.5 HP is perfect for small inflatable boats, canoes and other small boats. The Mercury outboard motors are known for their large displacement powerhead which gives this outboard substantially more power than other similar class rated engines. Standard features in Model # Mercury 2.5MH is a 15 inch short shaft, twist grip throttle, forward-neutral gear shift and a built in 1 liter fuel tank with tiller steering. Also included inside the box is a propeller, owners manual took kit, and the Mercury 3 year factory warranty.

- Compact and Lightweight
- Digital CD Ignition System
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral Gear Shift
- 360° Steering w/ Tension Feature
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Visual Oil Level Indicator
- Over-Rev Protection
- 4 Trim Level Positions
- Below-The-Water Exhaust
- 1.0 Liter (.30 Gallon) Integral Fuel Tank
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

MODEL 2.5MH

MODEL YEAR 2020

SKU 2.5MH-20

WEIGHT 41.0 lb

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 2.5hp

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 85 cc

BORE AND STROKE 55 x 36 mm

FULL THROTTLE RPM RANGE 5000-6000

IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 0.3 US Gallon (0.95 liter)

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 10 fl. Oz. (300 ml)

LUBRICATION Slinger Splashing System

ALTERNATOR Not available on 2.5hp models (4hp & up only)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral w/ 360° Steering for Reverse

PROPELLER 7.4″ Diameter x 7.0″ Pitch 3-Blade Composite

In The Box

- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Propeller (Composite)
- Mercury 4-Stroke Oil
- Tool Kit
