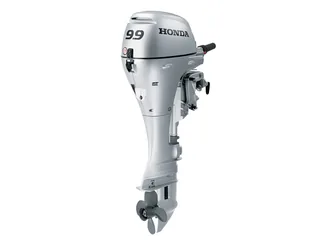

2020 HONDA 9.9 HP BF10DK3LHS Outboard Motor

9.9 HP Honda Outboard, Model #BF10DK3LHS, comes equipped with the 20 inch long shaft and the convenience of both easy manual start and electric start. You will find power to spare on the water plus an alternator capable of producing 12 A for your onboard battery. As with all Honda outboards, high tech design means a lightweight compact portable that does not sacrifice quality or durability. You will be impressed with the fuel efficiency and the smooth quiet ride across the water delivered by this model. Honda Outboards come with the best warranty in the industry, a true 5 year non-declining warranty.

- Reliable, efficient 4-stroke design
- Easy One Hand Starting
- True 5 Warranty
- Ultra Low 3 Star CARB Emissions
- 4-Front Corrosion Protection System – Fights the elements
- Available with Power Thrust Design (BFP) – better performance for heavy loads
- Reverse Exhaust Relief – increased manueverability (BFP models)
- Longer Tiller Handle – improved control
- PGM Ignition – optimal operation
- Engine Alert System – Keeps you informed
- Best in Class High Output Charging
- Lightweight Rounded Design
- Auto Start Enrichment – easy starts
- Pendulum Mount System – smooth operation
- EZ Steer Friction Control
- Shallow Water Drive
- Up Front Tiller Controls – convenient shifting
- Integrated Carrying Handle – easier transport
- Positive Lubrication for better durability

MODEL BF10DK3LHS

MODEL YEAR 2020

SKU BF10DK3LHS-20

WEIGHT 98.0 lb

MANUFACTURER Honda

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 9.9hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Electric

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 222 cc (13.5 cubic inches)

BORE AND STROKE 58 x 42 mm (2.3 x 1.7 in.)

FULL THROTTLE RPM RANGE 5000-6000 RPM

IGNITION SYSTEM PGM-IG

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE Unleaded Gasoline (86 octane)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE FC-W 10W-30

OIL CAPACITY Please inquire.

LUBRICATION Wet Sump

ALTERNATOR 12-Amp (148 watt)

COOLING SYSTEM Water Cooled

SALTWATER RATED Yes

GEAR RATIO 2.33:1

GEAR SHIFT Forward, Neutral, Reverse

PROPELLER 9.25″ Dia. X 8″ Pitch 4-Blade Aluminum

INTERNAL BATTERY No
