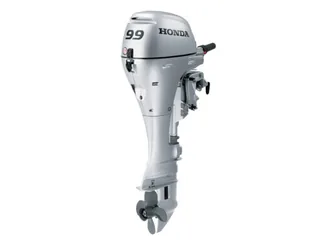

2020 HONDA 9.9 HP BF10DK3LHS OUTBOARD MOTOR

2020 HONDA 9.9 HP BF10DK3LHS Outboard Motor
9.9 HP Honda Outboard, Model #BF10DK3LHS, comes equipped with the 20 inch long shaft and the convenience of both easy manual start and electric start. You will find power to spare on the water plus an alternator capable of producing 12 A for your onboard battery. As with all Honda outboards, high tech design means a lightweight compact portable that does not sacrifice quality or durability. You will be impressed with the fuel efficiency and the smooth quiet ride across the water delivered by this model. Honda Outboards come with the best warranty in the industry, a true 5 year non-declining warranty.

Reliable, efficient 4-stroke design
Easy One Hand Starting
True 5 Warranty
Ultra Low 3 Star CARB Emissions
4-Front Corrosion Protection System – Fights the elements
Available with Power Thrust Design (BFP) – better performance for heavy loads
Reverse Exhaust Relief – increased manueverability (BFP models)
Longer Tiller Handle – improved control
PGM Ignition – optimal operation
Engine Alert System – Keeps you informed
Best in Class High Output Charging
Lightweight Rounded Design
Auto Start Enrichment – easy starts
Pendulum Mount System – smooth operation
EZ Steer Friction Control
Shallow Water Drive
Up Front Tiller Controls – convenient shifting
Integrated Carrying Handle – easier transport
Positive Lubrication for better durability

MODEL
BF10DK3LHS

MODEL YEAR
2020

SKU
BF10DK3LHS-20

WEIGHT
98.0 lb

MANUFACTURER
Honda

COUNTRY OF MANUFACTURE
Japan

HORSEPOWER
9.9hp

SHAFT LENGTH
20″ (Long)

STEERING
Tiller

STARTING
Electric

TRIM & TILT
Manual

FUEL DELIVERY
Carburetor

FUEL TANK
External

CYLINDER(S)
2

DISPLACEMENT
222 cc (13.5 cubic inches)

BORE AND STROKE
58 x 42 mm (2.3 x 1.7 in.)

FULL THROTTLE RPM RANGE
5000-6000 RPM

IGNITION SYSTEM
PGM-IG

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
2

FUEL TYPE
Unleaded Gasoline (86 octane)

FUEL TANK / FUEL LINE
3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE
FC-W 10W-30

OIL CAPACITY
Please inquire.

LUBRICATION
Wet Sump

ALTERNATOR
12-Amp (148 watt)

COOLING SYSTEM
Water Cooled

SALTWATER RATED
Yes

GEAR RATIO
2.33:1

GEAR SHIFT
Forward, Neutral, Reverse

PROPELLER
9.25″ Dia. X 8″ Pitch 4-Blade Aluminum

INTERNAL BATTERY
No
