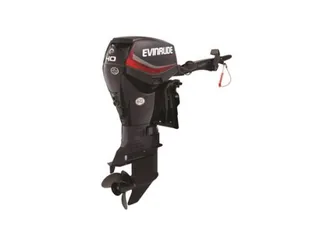

2020 EVINRUDE 40 HP E40DPGL OUTBOARD MOTOR

2020 Evinrude 40 HP E40DPGL Outboard Motor
Engine
Engine Type: Inline 2-Cylinder E-TEC D.I.
Bore x Stroke: 3.62 x 2.60 in. (92 x 66 mm)
Displacement: 53 cu.in. (864 L)
Starting: Electric
Dimensions
Shaft Length: 20 in. (508 mm)
Weight: 240 lb. (109 kg)
General
Trim Method: Power Trim & Tilt
Propshaft Horsepower: 40 hp
Full Throttle Operating Range: 5500-6000 RPM
Gear Ratio / Shift: 2.9:1
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator: 81 Amps Total / 25 Net Dedicated
Steering: Remote (Tiller acc.)
Warranty: 3-Year, Non-Declining

Specifications

Engine Type: Inline 2-Cylinder E-TEC D.I.
Bore x Stroke – in (mm): 3.62 x 2.60 (92 x 66)
Displacement – cu in (cc): 53 (864)
Gear Ratio: 2.9:1
Full Throttle RPM Range: 5500-6000 RPM
Controls: Mechanical
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator Output*: 81 Amps Total / 25 Net Dedicated
Trim Range: -4° to 16°
Tilt Range: 65°
Lubrication: Multi-Point Targeted Oiling
Oil Tank Capacity – qt (L): 2 (1.9)
Recommended Oil: XPS Marine XD100 / XD50
Recommended Fuel: 87 Octane
Warranty: 3-Year, Non-Declining
100% Global Emissions Compliant: EPA 2013 / CARB 3 STAR / European Union

Model Specific Specifications

Color: Graphite
Shaft Length – in. (mm): 20 (508)
Steering: Remote (Tiller acc.)
Starting: Electric
Trim Method: Power Trim & Tilt
Model No.: E40DPGL

Weight – lb (kg): 240 (109)
