Convenience & Control

- Control and Comfort: Our optional, award-winning Multi-Function Tiller handle features a Variable Trolling RPM Switch (VTS®). It allows for precision trolling speed adjustments in 50-RPM increments. Compatible with all Midrange models.
- Easy Engine Flushing: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
- Power Trim and Tilt: Power trim and tilt models provide a trim range of -3 up to +20 degrees. This brings the bow of the boat up, for better hole shot and top speed and a smoother ride.

Model Specific Features

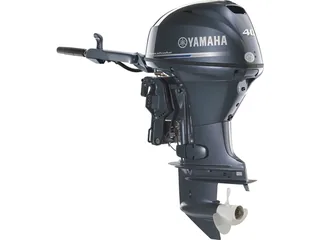

- Our 747-cc 40-hp midrange provides powerful performance in a compact package that’s available in both propeller- and jet-pump-driven models. With its single throttle valve, long-track intake manifold and electronic control module, it delivers easy starts, fast acceleration and excellent top-end speed.
- Available for mechanical or tiller-handle control
- Only 214 pounds
- Available in a 20” shaft
- Powerful 17-amp alternator
- Optional Variable Trolling RPM Switch (VTS®) via our Multi-Function Tiller Handle, Command Link® tachometer or new helm-mounted remote VTS switch

Specifications

- Engine Type: 3 cyl
- Displacement: 747cc
- Bore x Stroke: 65 x 75mm (2.56 x 2.95 in.)
- Prop Shaft Horsepower: 40hp at 5500rpm
- Full Throttle RPM Range: 5000 ~ 6000 rpm
- Alternator Output at W.O.T.: 17 Amp
- Compression Ratio: 9.4:1
- Fuel Induction System: EFI
- Weight*: 97 kg (214 lbs)
- Recommended Fuel: Octane 87
- Recommended Engine Oil: Yamalube® 4M (See owner’s manual)
- Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external)
- C.A.R.B. Rating: 3-Star
- Exhaust: Through Propeller
- Intake: 6
- Ignition: CDI Microcomputer
- Spark Plug: DPR6EB-9
- Alternator Output: 17 Amp
- Starting System: Electric
- Lubrication: Wet Sump
- Engine Oil Capacity: 1.7L/1.5L
- Recommended Cooling: Thermostatic Control
- Ethanol Blend Limit: 10% Maximum
- Gear Ratio: 2.00:1
- Gear Shift: Forward, Neutral, Reverse
- Shaft Length: 20″
- Degree of Tilt: 20°
- Degree of Trim: -3° through +20°
- Dry Weight: 97 kg (214 lbs)
- Mounting Centers: N/A
- Steering Angle (maximum): 40° from center, either direction
- Warranty: Limited 3-year Pleasure, 3-year Government, 1-Year Commercial
