2019 SUZUKI 25 HP DF25ATHL2 OUTBOARD MOTOR

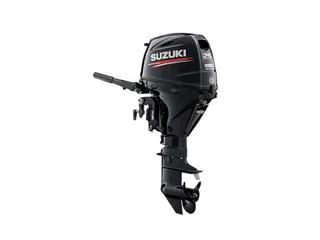

2019 Suzuki 25 HP DF25ATHL2 Outboard Motor
Clean, Green Technology is built into the Suzuki 25 HP outboard motor. This 4 stroke, battery-less EFI engine delivers a clean fuel efficient powerful performance in the water. You will start fast and accelerate fast. The Suzuki outboard is first in class in both weight and quietness. Suzuki Outboard Motor, model: DF25ATHL2 is equipped with a 20 inch long shaft, push button electric start, and power trim and tilt for convenience. Standard features include a 6 gallon external fuel tank and fuel line, a propeller, a took kit and the Suzuki famous 3 year factory warranty.

Battery-Less Electronic Fuel Injection
Easy Start – Recoil Starter
Lean Burn Control
Over-Rev. Limiter
Low Oil Pressure Caution
Digital CDI
Fresh Water Flushing System
Shallow Water Drive
Suzuki Anti-Corrosion System

MODEL
DF25ATHL2

SKU
DF25ATHL2-20

WEIGHT
163.0 lb

MANUFACTURER
Suzuki

COUNTRY OF MANUFACTURE
Thailand

HORSEPOWER
25hp

SHAFT LENGTH
20″ (Long)

STEERING
Tiller

STARTING
Electric

TRIM & TILT
Power Trim & Tilt

FUEL DELIVERY
EFI

FUEL TANK
External

CYLINDER(S)
3

DISPLACEMENT
29.8 (489)

BORE AND STROKE
2.80 x 2.68 ()

FULL THROTTLE RPM RANGE
5000 – 6000

IGNITION SYSTEM
Digital CDI

INDUCTION SCAVENGING
SOHC

VALVES PER CYLINDER
4

FUEL TYPE
Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE
Yes

OIL TYPE
SAE 10W-30 or SAE 10W-40

OIL CAPACITY
1.6 (1.5)L

LUBRICATION
Wet Sump; Trochoid Type Cam-Driven Oil Pump

ALTERNATOR
Manual 12V 14A / Electric 12V 14A

COOLING SYSTEM
Water-Cooled

SALTWATER RATED
Yes

GEAR RATIO
2.09:1

GEAR SHIFT
Forward-Neutral-Reverse (front-mounted lever)

PROPELLER
3 x 11.25 x 10
