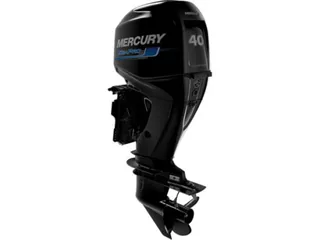

2019 MERCURY 40 HP 40ELPTBT OUTBOARD MOTOR

2019 Mercury 40 HP 40ELPTBT Outboard Motor

Features

A compact, single-overhead-cam design and long piston stroke deliver more low-end torque for stout power, even when pushing a heavy load. For commercial fishing vessels, commercial workboats and law-enforcement boats.
Engineered for Commercial: Engineered to deliver longer engine life while maintaining the power and performance necessary to get the job done, the 60 and 40hp SeaPro FourStroke engines are validated to three times the engine life of a recreational engine.
Command Thrust Gearcase: The 60 and 40hp SeaPro FourStroke engines come standard with the Command Thrust gearcase. Its larger torpedo, combined with a bigger-diameter prop, can lift a heavy boat onto plane more easily and hold it there at lower speeds without impacting top speed.
Corrosion Resistance: Mercury’s proprietary formula – XK360, is an extremely low copper content aluminium alloy, which leads the industry in corrosion resistance. This makes costly corrosion failures and high labour bills a thing of the past. Most competitors use alloys with 2% to 4% copper content which will corrode faster than our MercAlloy, XK360 or A356 alloys.
Repower with SeaPro: The compact size also means older boats not initially designed for the weight of heavier four-stroke outboards can now be repowered and reborn to perform at their best with the latest technology.

Specifications

HP / kW: 40 / 30
Engine type: 8-valve single overhead cam (SOHC); Inline 4
Displacement (CID/CC): 60.8 / 995
Air induction: Performance-Tuned Scroll Intake Manifold
Fuel induction system: Computer Controlled Multi-Port Electronic Fuel Injection (EFI)
Alternator amp / Watt: 18 amp / 226 watt
Recommended fuel: Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum
Recommended oil: NMMA Certified FCW SAE 25W-40
Engine protection operator warning system: SmartCraft Engine Guardian
Starting: Electric (turn-key)
Controls: Mechanical throttle & shift
Steering: Big Tiller; Remote
Shaft length: 20″ / 508 mm
Gearcase ratio: 2.33:1
Dry weight *Lightest model available: 260 lbs / 118 kg
Bore and stroke: 2.56 x 2.95″ / 65 x 75 mm
Ignition: SmartCraft ECM 07 Digital Inductive
Cooling system: Water-cooled with thermostat
Gearcase options: Command Thrust (CT)
Trim system: Gas Assist available; Power Tilt; Power Trim
Exhaust system: Through prop
Lubrication system: Wet sump
Oil Capacity: 3.0 qts / 2.8 l

Engine
Engine Type
8-valve single overhead cam (SOHC); Inline 4

Bore x Stroke
2.56 x 2.95 in. (65 x 75 mm)

Displacement
60.8 cid (995cc)

Starting
Electric (turn-key)

Dimensions
Shaft Length
20 in. (508 mm)

Weight
260 lb. (118 kg)

General
Trim Method
Gas Assist available; Power Tilt; Power Trim

Propshaft Horsepower
40 hp (30 kW)

Gear Ratio / Shift
2.33:1

Fuel Induction
Computer Controlled Multi-Port Electronic Fuel Injection (EFI)

Alternator
18 amp / 226 watt

Cooling
Water-cooled with thermostat

Steering
Big Tiller; Remote
