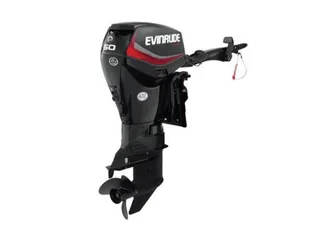

2019 EVINRUDE 60 HP E60DPGL OUTBOARD MOTOR

2019 Evinrude 60 HP E60DPGL Outboard Motor
Engine
Engine Type: Inline 2-Cylinder E-TEC D.I.
Bore x Stroke: 3.62 x 2.60 in. (92 x 66 mm)
Displacement: 52.7 cu.in. (863cc)
Starting: Electric
Dimensions
Shaft Length: 20 in. (508 mm)
Weight: 240 lb. (109 kg)
General
Trim Method: Power Trim and Tilt
Propshaft Horsepower: 60 hp
Full Throttle Operating Range: 5500-6000 rpm
Gear Ratio / Shift: 2.9:1
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator: 81 Amps Total / 25 Net Dedicated
Steering: Remote (Tiller Accessory)
Warranty: 3-Year, Non-Declining

Specifications

Engine Model: E60DPGL Graphite
Engine Type: Inline 2-Cylinder E-TEC D.I.
Bore x Stroke – in (mm): 3.62 x 2.60 (92 x 66)
Displacement – cu in (cc) L: 52.7 (863)
Gear Ratio: 2.9:1
Full Throttle RPM Range: 5500-6000 RPM
Weight – lbs (kg): 240 (109)
Starting: Electric
Controls: Mechanical
Fuel Induction: E-TEC Direct Injection with stratified low RPM combustion mode
Alternator Output*: 81 Amps Total / 25 Net Dedicated
Steering: Remote (Tiller Accessory)
Trim Method: Power Trim and Tilt
Trim Range: -4° to 16°
Tilt Range: 65°
Shaft Length – in (mm): 20 (508)
Lubrication: Multi-Point Targeted Oiling
Oil Tank Capacity – gal (L): 2 (1.9)
Recommended Oil: Evinrude / Johnson XD-100 Oil
Recommended Fuel: 87 Octane
Warranty: 3-Year, Non-Declining
Emissions Compliance: EPA 2013 / CARB 3 STAR / European Union
