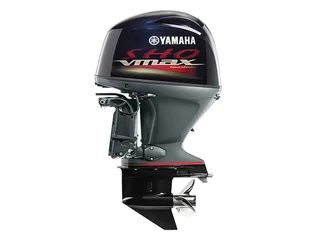

2018 Yamaha VF150 V MAX SHO 2.8L VF150LA Outboard Motor

The IBEX Award-winning I-4 V MAX SHO® 150 was the first of its kind, inspiring the VF175 and VF115. With exhilarating top speed and a 7.7-second hole shot that bests some competitors by up to 4 seconds, it serves up signature V MAX SHO performance.*

2018 Yamaha VF150 V MAX SHO 2.8L VF150LA Outboard Motor

Convenience & Control

- EASY RIGGING: I-4 V MAX SHO® outboards feature mechanical controls for easy, convenient rigging with most bass, bay and flats boats, and are compatible with analog, 6Y5 digital or Command Link® gauges.
- EXTRA SPACE: A four stroke in-line design means there’s no need for an external oil tank. That means less weight and more storage room in the boat for tackle and gear.
- AMPLE CHARGING POWER: At 50 amps, the V MAX SHO® 175 and 150 alternators boast an 11 percent increase in charging power over the two stroke 150 HPDI®.

Power & Performance

- QUIET POWER AND PERFORMANCE: The I-4 V MAX SHO® design maximizes combustion efficiency in a way that no two stroke can, delivering clean, quiet power and performance.
- MIDRANGE POWER AND RESPONSE: The V MAX SHO® 175 and 150 feature Variable Camshaft Timing, which optimizes the angle of the intake camshaft to increase power and throttle response in the low- and mid-RPM ranges.
- FUEL EFFICIENT: In-line Four V MAX SHO® designs are up to 40% more fuel efficient than traditional carbureted two strokes.
- OPTIMUM POWER: Precision Multi-Point Electronic Fuel Injection and long-track intake system combine to maximize power and fuel efficiency across the line of In-Line Four V MAX SHO® outboards.
- POWER MANAGEMENT: An array of advanced sensors constantly provide vital atmospheric and engine conditions to the Engine Control Module (ECM), which instantly makes the precise adjustments for optimum performance.

Reliability & Durability

- ENGINE WARNING SYSTEM: This system protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, water-in-fuel detection, start-in-gear protection and shift-in prevention at open throttle.
- BETTER LUBRICATION: Wet sump pump lubrication that uses a pressurized oil delivery system through an oil pump.
- CORROSION PROTECTION: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ electro-deposited, anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha I-4 V MAX SHO® four-stroke engines.
- UNBEATABLE RELIABILITY: The I-4 V MAX SHO® 175 and 150 feature a Cowling Drain System and Air Intake Labyrinth System to trap and drain water that enters their cowlings during normal operation.

2018 Yamaha VF150 V MAX SHO 2.8L VF150LA Outboard Motor

General Information

Manufacturer

Yamaha

Model Year

2018

Model

VF150 V MAX SHO 2.8L

Model Code

VF150LA

Color

Black / Grey

Electrical

Alternator Output

50 amp

Engine

Engine Type

Inline 4

Ignition

TCI Microcomputer

Exhaust

Through propeller

Measurements

Power

150 Horsepower

Displacement

2,785 Cubic Centimeter

Bore x Stroke

96 x 96.2 mm (3.78 x 3.79 in.)

Shaft Length

20″

Dry Weight

480 lbs

Operational

Steering

Remote mechanical controls

Fuel Type

Unleaded

Use

Fresh and Salt Water

Full Throttle RPM Range

5,000 – 6,000 rpm

Fuel Induction

EFI

Lubrication

Wet sump

Recommended oil – Yamalube® 4M

Oil capacity with filter – 4.5 l

Oil capacity without filter – 4.3 l

Cooling

Thermostatic control

Gear Ratio

2.00:1

Gear Shift

Forward, neutral, reverse

Trim System

Power trim and tilt

-4° through +16°

Degree of tilt – 70°

Other

Warranty

3 Year Pleasure, 3 Year Government, 1 Year Commercial

2018 Yamaha VF150 V MAX SHO 2.8L VF150LA Outboard Motor

1 X Outboard Motor

1 X Outboard Tiller Handle

1 X Fuel Tank

1 X Quick Connect Fuel Line tilt switch

1 x Teleflex SL3 Throttle control Top or side Mount ? + Free Installation Universal Cables

1 X Outboard Warranty Card from manufacturer Valid 5 Years Depending on outboard type

1 X Standart Aluminum Propeller Depending on outboard Brands , type & Horse power.

1 X Trim limiter

3 X Gall Free Oil Depending on outboard Brands Yamalube, Honda Marine Oil, Mercury Premium Oil

1 X Stainless Outboard Anti-Theft

1 X Book Owner’s Manual Guide from manufacturer

1 X Ebook Installation Guide & And how to take care of the engine properly.

3 X Cable Protection System Length 800mm
