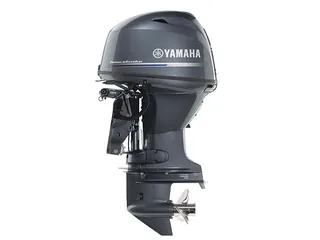

2018 Yamaha F50 Midrange Mechanical 20 F50LB Outboard Motor

For inshore fishing performance in a few less horses, turn to Yamaha’s 1-liter 50-hp midrange. Inspired by the F70’s ingenious design, it combines light weight, exhilarating performance, valuable efficiency and the option of variable trolling via our Multi-Function Tiller Handle, Command Link® Tachometer or our new, helm-mounted remote Variable Trolling RPM Switch (VTS®).

2018 Yamaha F50 Midrange Mechanical 20 F50LB Outboard Motor

Convenience & Control

- CONTROL AND COMFORT: Our optional, award-winning Multi-Function Tiller handle features a Variable Trolling RPM Switch (VTS®). It allows for precision trolling speed adjustments in 50-RPM increments. Compatible with all Midrange models.
- EASY ENGINE FLUSHING: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.​
- GAUGE COMPATIBILITY: Optional Command Link® gauges provide real-time outboard performance, boat systems and environmental data at your fingertips. Streamlined displays are designed to withstand the elements and are available in square or round style for single- or multi-engine applications.

Power & Performance

- SINGLE OVERHEAD CAMSHAFT: A Single Overhead Camshaft (SOHC) on the F70, F60 and F50 provides a compact, lightweight, space-saving design.
- FUEL ECONOMY: Precision Multi-Point Electronic Fuel Injection delivers the exact amount of fuel needed for optimum performance and efficiency. Yamaha’s EFI optimizes fuel atomization further enhancing fuel economy.
- POWERFUL HOLE SHOT: A Composite Intake Manifold features long tube intake tracks, tuned to increase airflow, which boost low-end and midrange torque. This means a more powerful hole shot and increased acceleration. Even with all this responsive power, an air silencer box and surge tank reduce air intake noise and air turbulence for smooth, quiet operation.
- OPTIMUM PERFORMANCE: A TCI microcomputer ignition adjusts timing to maintain optimal engine performance, economy and power under all operating conditions.
- PRECISE THROTTLE CONTROL: All air entering the engine block is routed through a single throttle valve, to ensure the precise amount of air necessary for optimum power and fuel efficiency. It then enters each cylinder through individual long intake tracks, which are ‘pulse tuned’ to provide air at the precise volume and timing for maximum density and power.

Reliability & Durability

- CORROSION PROTECTION: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ electro-deposited, anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all the Yamaha Midrange 70-, 60- and 50-horsepower four strokes.
- ENGINE WARNING SYSTEM: This system protects the outboard with a range of functions including: overheat protection and low-oil-pressure warning (automatically reducing maximum RPM to 2000), over-rev protection, water-in-fuel detection, start-in-gear protection and shift-in prevention at open throttle.
- WET SUMP: The F70, F60 and F50 use a pressurized oil delivery system and incorporate a compact and durable oil pump to keep all of the moving parts of their SOHC systems lubricated and running smoothly for maximum reliability.
- MAGNETIC DRAIN PLUG: Located in the lower unit to remove metal particles from the gear oil and prevent gearcase damage.

2018 Yamaha F50 Midrange Mechanical 20 F50LB Outboard Motor

General Information

Manufacturer

Yamaha

Model Year

2018

Model

F50 Midrange Mechanical 20

Model Code

F50LB

Color

Grey

Electrical

Alternator Output

16 Amp

Engine

Engine Type

Inline 4

Ignition

TCI Microcomputer

Starting

Electric

Exhaust

Through propeller

Measurements

Power

50 Horsepower

Displacement

996 Cubic Centimeter

Bore x Stroke

65 x 75 mm (2.56 x 2.95 in.)

Shaft Length

20″

Dry Weight

247 lbs

Operational

Fuel Type

Unleaded

Use

Fresh and Salt Water

Full Throttle RPM Range

5,000 – 6,000 rpm

Fuel Induction

EFI

Lubrication

Wet sump

Recommended oil – Yamalube® 4M

Oil capacity with filter – 2.1 l

Oil capacity without filter – 1.9 l

Gear Shift

Forward, neutral, reverse

Trim System

Power trim and tilt

-4° through +16°

Degree of Tilt – 69°

2018 Yamaha F50 Midrange Mechanical 20 F50LB Outboard Motor

WHAT’S IN THE BOX ?

1 X Outboard Motor

1 X Outboard Tiller Handle

1 X Fuel Tank

1 X Quick Connect Fuel Line tilt switch

1 x Teleflex SL3 Throttle control Top or side Mount ? + Free Installation Universal Cables

1 X Outboard Warranty Card from manufacturer Valid 5 Years Depending on outboard type

1 X Standart Aluminum Propeller Depending on outboard Brands , type & Horse power.

1 X Trim limiter

3 X Gall Free Oil Depending on outboard Brands Yamalube, Honda Marine Oil, Mercury Premium Oil

1 X Stainless Outboard Anti-Theft

1 X Book Owner’s Manual Guide from manufacturer

1 X Ebook Installation Guide & And how to take care of the engine properly.

3 X Cable Protection System Length 800mm
