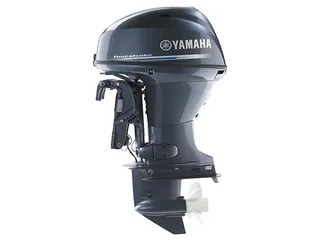

2018 Yamaha F30 Midrange Mechanical 20 F30LA Outboard Motor

Our 747-cc 30-hp midrange boasts a streamlined design and solid performance. At just 214 pounds, it’s suitable for lightweight craft such as aluminum fishing boats and inflatables. Its Nitro Assist Tilt makes tilting almost effortless.

2018 Yamaha F30 Midrange Mechanical 20 F30LA Outboard Motor

Convenience & Control

- CONTROL AND COMFORT: Our optional, award-winning Multi-Function Tiller handle features a Variable Trolling RPM Switch (VTS®). It allows for precision trolling speed adjustments in 50-RPM increments. Compatible with all Midrange models.
- EASY ENGINE FLUSHING: A Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
- POWER TRIM AND TILT: Power trim and tilt models provide a trim range of -3 up to +20 degrees. This brings the bow of the boat up, for better hole shot and top speed and a smoother ride.

Power & Performance

- FUEL ECONOMY: Precision Multi-Point Electronic Fuel Injection delivers the exact amount of fuel needed for optimum performance and efficiency. Yamaha’s EFI optimizes fuel atomization further enhancing fuel economy.
- SINGLE OVERHEAD CAMSHAFT: A Single Overhead Camshaft (SOHC), three-cylinder design on the F40 and F30 provides a compact, lightweight, space-saving design.
- PRECISE THROTTLE CONTROL” All air entering the engine block of is routed through a single throttle valve, to ensure the precise amount of air necessary for optimum power and fuel efficiency. It then enters each cylinder through individual long intake tracks, which are ‘pulse tuned’ to provide air at the precise volume and timing for maximum density and power.
- DEPENDABLE STARTING: The F40 and F30 feature a vapor-reducing fuel return system. Used in conjuction with multi-point electronic fuel injection, they offer dependable turn-key starting in hot or cold conditions.

Reliability & Durability

- CORROSION PROTECTION: Combined with our proprietary alloy (YDC-30), our exclusive Phaze Five™ anti-corrosive paint system provides a tough, five-layer barrier against corrosion. This protection is standard on all Yamaha Midrange four-stroke engines.
- PROTECTION FROM THE ELEMENTS: A proven one-piece cowling with an intake air drain system easily and efficiently drains water away that enters the cowling. Incoming air is routed through a labyrinth of passages that help trap water before it enters the engine’s intake for maximum reliability.
- CLEANER FUEL: A large, on-engine water separating fuel filter with a water sensor is used in conjunction with the Yamaha optional boat-mounted 10-Micron Water Separating Fuel Filter. This helps separate water and contaiminants from the fuel before they can reach the outboard’s other filters and fuel injectors.

2018 Yamaha F30 Midrange Mechanical 20 F30LA Outboard Motor

General Information

Manufacturer

Yamaha

Model Year

2018

Model

F30 Midrange Mechanical 20

Model Code

F30LA

Color

Grey

Electrical

Alternator Output

17 Amp

Engine

Engine Type

3 cylinder

Ignition

CDI Microcomputer

Starting

Electric

Exhaust

Through propeller

Measurements

Power

30 Horsepower

Displacement

747 Cubic Centimeter

Bore x Stroke

65 x 75 mm (2.56 x 2.95 in.)

Shaft Length

20″

Dry Weight

214 lbs

Operational

Steering

Remote mechanical controls

Fuel Type

Unleaded

Use

Fresh and Salt Water

Full Throttle RPM Range

5,000 – 6,000 rpm

Fuel Induction

EFI

Lubrication

Wet sump

Recommended oil – Yamalube® 4M

Oil capacity with filter – 1.7 l

Oil capacity without filter – 1.5 l

Gear Shift

Forward, neutral, reverse

Trim System

-3° through +20°

Degree of tilt – 66°

2018 Yamaha F30 Midrange Mechanical 20 F30LA Outboard Motor

WHAT’S IN THE BOX ?

1 X Outboard Motor

1 X Outboard Tiller Handle

1 X Fuel Tank

1 X Quick Connect Fuel Line tilt switch

1 x Teleflex SL3 Throttle control Top or side Mount + Free Installation Universal Cables

1 X Outboard Warranty Card from manufacturer Valid 5 Years Depending on outboard type

1 X Standart Aluminum Propeller Depending on outboard Brands , type & Horse power.

1 X Trim limiter

3 X Gall Free Oil Depending on outboard Brands Yamalube, Honda Marine Oil, Mercury Premium Oil

1 X Stainless Outboard Anti-Theft

1 X Book Owner’s Manual Guide from manufacturer

1 X Ebook Installation Guide & And how to take care of the engine properly.

3 X Cable Protection System Length 800mm
