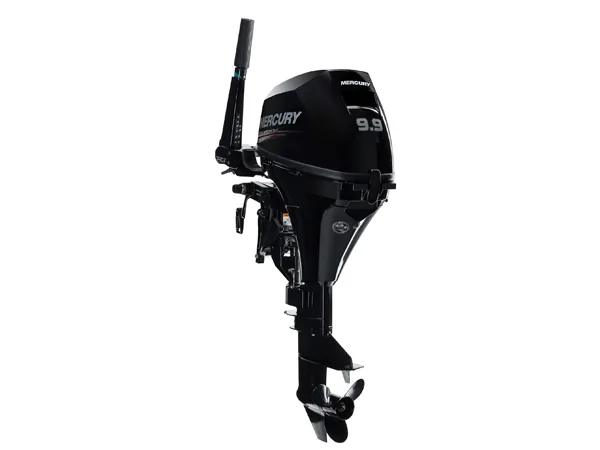

2018 Mercury 9.9 Hp 9.9MLH Outboard Motor

The Mercury 9.9hp outboard motor is lightweight, compact, powerful, and portable making it the perfect outboard for skiffs and small pontoons. The Mercury 9.9 HP outboard engine is a two cylinder four-stroke marine engine that delivers the fuel efficiency and smooth quiet ride Mercury outboards are known for. This 84 lb. Mercury 9.9 HP Outboard Model #: 9.9MLH comes equipped with a manual start and 20 inch shaft, factory 3 year warranty, auto ratchet trim, and tiller steering.

2018 Mercury 9.9 Hp 9.9MLH Outboard Motor

- Compact and Lightweight
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

2018 Mercury 9.9 Hp 9.9MLH Outboard Motor

MODEL 9.9MLH

MODEL YEAR 2018

SKU 9.9MLH-18

WEIGHT 84.0000

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 9.9hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 12.8 ci (208 cc)

BORE AND STROKE 2.16 x 1.73 in. (55 x 44 mm)

FULL THROTTLE RPM RANGE 5,000 – 6,000

IGNITION SYSTEM CDI with electronic spark advance

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 27 fl. Oz. (800 ml)

LUBRICATION Trochoid Pump

ALTERNATOR Optional 12V 76W 6A (installation required)

COOLING SYSTEM Water-cooled with thermostat

SALTWATER RATED YES

GEAR RATIO 2.08:1

GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)

PROPELLER 8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum

INTERNAL BATTERY No

2018 Mercury 9.9 Hp 9.9MLH Outboard Motor

WHAT’S IN THE BOX?

- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
