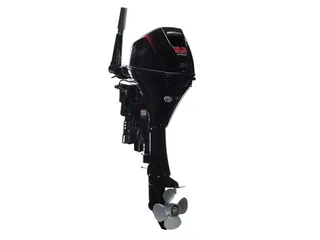

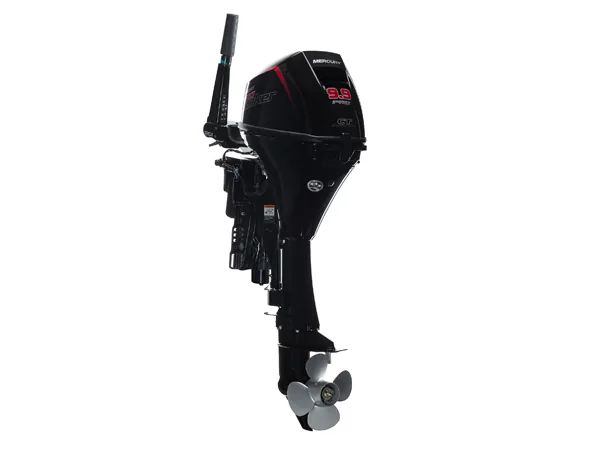

2018 Mercury 9.9 Hp 9.9ELHPT-CT-PK Outboard Motor

The Mercury 9.9 HP Outboard motor with Command Thrust delivers the power, thrust, and control that wider, heavier boats need. A 20 % larger prop increases control and a taller gear case puts the prop deeper below turbulent water for improved performance. A low 2.42:1 gear ratio and high thrust propeller make the 103 lb. Mercury 9.9 outboard engine an excellent choice for sailboat and trolling/kicker applications. The Command Thrust over-sized, anti-ventilation plate prevents air from being drawn into the propeller, further enhancing efficiency and performance. The 9.9 HP Mercury Outboard Motor model: 9.9ELHPT-CT-PK is equipped with a 20 inch long shaft and electric start, auto ratchet tilt and trim, and Mercury’s multi-function tiller handle which allows one-handed operation of F-N-R gear shifting, throttle, and throttle tension, steering, and stopping. Mercury provides a base 3 year warranty.

2018 Mercury 9.9 Hp 9.9ELHPT-CT-PK Outboard Motor

- Compact and Lightweight
- Designed for Heavy Applications
- CommandThrust Lower Unit (2.42:1 Gear Ratio)
- High Thrust Propeller
- Oversized Anti-Ventilation Plate
- Electric Start + 12V 76W 6A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Heavy Duty Transom Mounting Bracket
- Power Operated Tilt (Range: -4° to 75°)
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

2018 Mercury 9.9 Hp 9.9ELHPT-CT-PK Outboard Motor

MODEL 9.9ELHPT-CT-PK

MODEL YEAR 2018

SKU 9.9ELHPT-CT-PK-18

WEIGHT 111.0000

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 9.9hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Electric

TRIM & TILT Power Tilt

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 208 cc (12.8 cubic inches)

BORE AND STROKE 55 x 44 mm (2.16 x 1.73 inches)

FULL THROTTLE RPM RANGE 5000-6000

IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 27 fl. Oz. (800 ml)

LUBRICATION Trochoid Pump

ALTERNATOR 12V 76W 6A (standard on electric start models)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED YES

GEAR RATIO 2.42:1 CommandThrust Gearcase

GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)

PROPELLER CommandThrust 4-Blade High Thrust Aluminum Propeller

INTERNAL BATTERY No

2018 Mercury 9.9 Hp 9.9ELHPT-CT-PK Outboard Motor

WHAT’S IN THE BOX?

- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- 4-Blade Aluminum Prop
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
