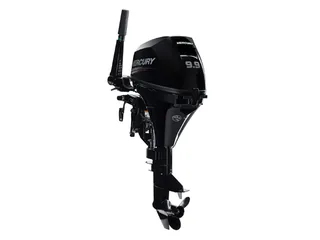

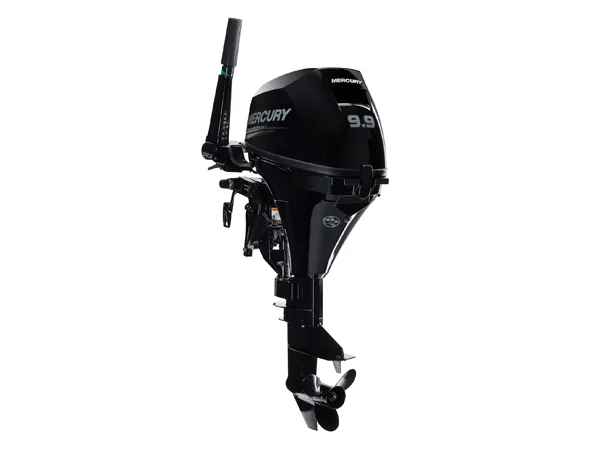

2018 Mercury 9.9 Hp 9.9ELH-CT Outboard Motor

Mercury’s portable 2018 9.9 HP Outboard motor with Command Thrust delivers the power, thrust, and control that wider, heavier boats demand. A larger prop increases control, a taller gear case puts the prop deeper below turbulent water for enhanced performance. the Mercury 9.9 outboard engine is an excellent choice for sailboat and trolling/kicker applications. The 103 lb. 9.9 HP Mercury Outboard Motor model: 9.9ELH-CT is equipped with a long 20 inch shaft and electric start motor, Mercury’s multi-function tiller handle, a 3 year factory warranty that begins the date of purchase, and fuel efficient operation with the reliability that Mercury is known for.

2018 Mercury 9.9 Hp 9.9ELH-CT Outboard Motor

- Compact and Lightweight
- Designed for Heavy Applications
- CommandThrust Lower Unit (2.42:1 Gear Ratio)
- High Thrust Propeller
- Oversized Anti-Ventilation Plate
- Electric Start + 12V 76W 6A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

2018 Mercury 9.9 Hp 9.9ELH-CT Outboard Motor

MODEL 9.9ELH-CT

MODEL YEAR 2018

SKU 9.9ELH-CT-18

WEIGHT 103.0000

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 9.9hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Electric

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 208 cc (12.8 cubic inches)

BORE AND STROKE 55 x 44 mm (2.16 x 1.73 inches)

FULL THROTTLE RPM RANGE 5000-6000

IGNITION SYSTEM Digital CD Ignition w/Electronic Spark Advance

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 27 fl. Oz. (800 ml)

LUBRICATION Trochoid Pump

ALTERNATOR 12V 76W 6A (standard on electric start models)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED YES

GEAR RATIO 2.42:1 BigFoot Gearcase

GEAR SHIFT Forward-Neutral-Reverse (shift in tiller handle)

PROPELLER BigFoot 4-Blade High Thrust Aluminum Propeller

INTERNAL BATTERY No

2018 Mercury 9.9 Hp 9.9ELH-CT Outboard Motor

WHAT’S IN THE BOX?

- Fuel Tank (3.2 gallon)
- Mercury 3-Year Warranty
- 4-Blade Aluminum Prop
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
