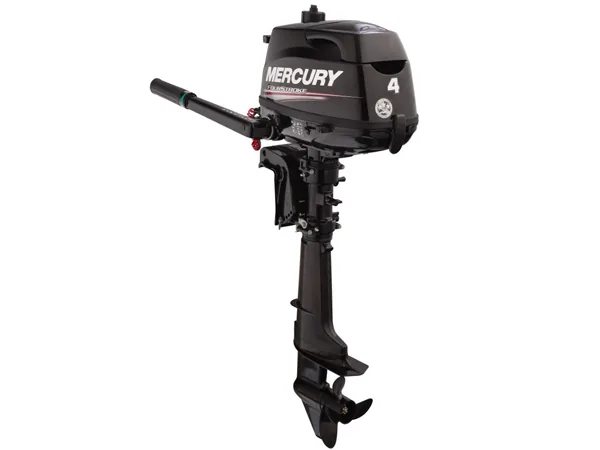

2018 Mercury 4 Hp 4MLH Outboard Motor

Perfect choice for small fishing boats, small to medium sized inflatables and sailboats. The 58 lb. Mercury 4 HP outboard engine model # 4MLH is compact, lightweight, and comes equipped with the long 20 inch shaft, manual start, tiller steering and, full forward-neutral-reverse gears and the twist grip throttle. Mercury 4hp models feature an integrated fuel tank for true portability. External tank connection is standard which makes adding an external fuel tank and line quick and easy.

2018 Mercury 4 Hp 4MLH Outboard Motor

- Compact and Lightweight
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes
- Forward-Neutral-Reverse Gear Shift
- Adjustable Steering Tension Control
- Forward Mounted Gear Shift Selector
- Twist-Grip Throttle with Tension Control
- Integrated Carry Handle
- Thermostat Controlled Water Cooling
- Shallow Water Drive; 6 Trim Positions
- Quiet Through-Propeller-Hub Exhaust
- 1.15 Liter (.30 Gallon) Integral Fuel Tank
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

2018 Mercury 4 Hp 4MLH Outboard Motor

MODEL 4MLH

MODEL YEAR 2018

SKU 4MLH-18

WEIGHT 58.0000

MANUFACTURER Mercury

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 4hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK Internal

CYLINDER(S) 1

DISPLACEMENT 7.5/123

BORE AND STROKE 2.32 x 1.77

FULL THROTTLE RPM RANGE 4500-5500

IGNITION SYSTEM CDI

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE 87 Octane (up to 10% ethanol content)

FUEL TANK / FUEL LINE 0.3 US Gallon (1.15 liter)

OIL TYPE SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

OIL CAPACITY 15 fl. Oz. (450 ml)

LUBRICATION Pressurized wet sump

ALTERNATOR Optional 12V 50W 4A (installation required)

COOLING SYSTEM Water-cooled w/thermostat

SALTWATER RATED YES

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral-Reverse (forward mounted shift lever)

PROPELLER 7.7″ Diameter X 7.0″ Pitch 3-Blade Aluminum

INTERNAL BATTERY No

2018 Mercury 4 Hp 4MLH Outboard Motor

WHAT’S IN THE BOX?

- Integral Fuel Tank (0.3 gal)
- Owner’s Manual
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Tool Kit
