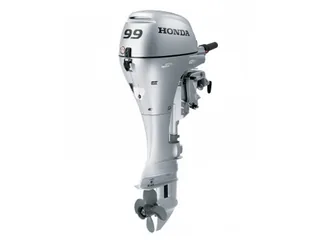

2018 Honda 9.9 Hp BFP10D3XHS Outboard Motor

You can depend on Honda Marine to build quality, dependable and durable outboard motors, but with the 9.9 HP Honda Outboard Model BFP10D3XHS equipped with the extra long 25 inch shaft, you get so much more! Special features on this model include convenience of electric start along side your manual rope start! Without sacrificing quality of power, Honda Marine has designed a lightweight, compact outboard that is truly easy to transport and once you get it to your boat this engine provides you with a smooth, quiet ride across the water. Additionally with every Honda outboard you receive a 5 year factory warranty!

2018 Honda 9.9 Hp BFP10D3XHS Outboard Motor

- Reliable, efficient 4-stroke design
- Easy One Hand Starting
- True 5 Warranty
- Ultra Low 3 Star CARB Emissions
- 4-Front Corrosion Protection System – Fights the elements
- Available with Power Thrust Design (BFP) – better performance for heavy loads
- Reverse Exhaust Relief – increased manueverability (BFP models)
- Longer Tiller Handle – improved control
- Power Thrust
- PGM Ignition – optimal operation
- Engine Alert System – Keeps you informed
- Best in Class High Output Charging
- Lightweight Rounded Design
- Auto Start Enrichment – easy starts
- Pendulum Mount System – smooth operation
- EZ Steer Friction Control
- Shallow Water Drive
- Up Front Tiller Controls – convenient shifting
- Integrated Carrying Handle – easier transport
- Positive Lubrication for better durability

2018 Honda 9.9 Hp BFP10D3XHS Outboard Motor

MODEL BFP10D3XHS

MODEL YEAR 2018

SKU BFP10D3XHS-18

WEIGHT 113.0000

MANUFACTURER Honda

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 9.9hp

SHAFT LENGTH 25″ (Extra Long)

STEERING Tiller

STARTING Electric

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 222 cc (13.5 cubic inches)

BORE AND STROKE 58 x 42 mm (2.3 x 1.7 in.)

FULL THROTTLE RPM RANGE 5000-6000 RPM

IGNITION SYSTEM PGM-IG

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE Unleaded Gasoline (86 octane)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE FC-W 10W-30

OIL CAPACITY Please inquire.

LUBRICATION Wet Sump

ALTERNATOR 12-Amp (148 watt)

COOLING SYSTEM Water Cooled

SALTWATER RATED YES

GEAR RATIO 2.33:1

GEAR SHIFT Forward, Neutral, Reverse

PROPELLER 10″ Dia. X 6.5″ Pitch 4-Blade Aluminum

INTERNAL BATTERY NO

2018 Honda 9.9 Hp BFP10D3XHS Outboard Motor

WHAT’S IN THE BOX?

- Fuel Tank (3 gallon)
- Quick Connect Fuel Line
- Aluminum Propeller
- Owner’s Manual & Tool Kit
- True 5-Year Warrant
