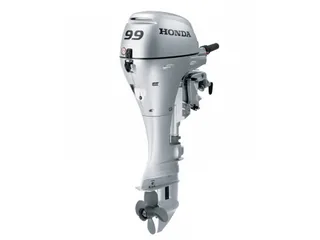

2018 Honda 9.9 Hp BF10DK3LH Outboard Motor

Efficient and Powerful describe Honda’s 9.9 HP Outboard model #BF10DK3LH. Honda Marine technology is always advancing and improving. Honda outboard’s lightweight design is compact and easy to transport, but with Honda that does not mean you sacrifice power and quality. In fact this outboard motor has all the power you need and then some, plus extra battery charging power. This model comes equipped with a long 20 inch shaft, easy manual start and battery charging capability. Honda backs up their claims for quality and dependability with a true 5 year warranty. The best warranty in the industry.

2018 Honda 9.9 Hp BF10DK3LH Outboard Motor

- Reliable, efficient 4-stroke design
- Easy One Hand Starting
- True 5 Warranty
- Ultra Low 3 Star CARB Emissions
- 4-Front Corrosion Protection System – Fights the elements
- Available with Power Thrust Design (BFP) – better performance for heavy loads
- Reverse Exhaust Relief – increased manueverability (BFP models)
- Longer Tiller Handle – improved control
- PGM Ignition – optimal operation
- Engine Alert System – Keeps you informed
- Best in Class High Output Charging
- Lightweight Rounded Design
- Auto Start Enrichment – easy starts
- Pendulum Mount System – smooth operation
- EZ Steer Friction Control
- Shallow Water Drive
- Up Front Tiller Controls – convenient shifting
- Integrated Carrying Handle – easier transport
- Positive Lubrication for better durability

2018 Honda 9.9 Hp BF10DK3LH Outboard Motor

MODEL BF10DK3LH

MODEL YEAR 2018

SKU BF10DK3LH-18

WEIGHT 98.0000

MANUFACTURER Honda

COUNTRY OF MANUFACTURE Japan

HORSEPOWER 9.9hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 222 cc (13.5 cubic inches)

BORE AND STROKE 58 x 42 mm (2.3 x 1.7 in.)

FULL THROTTLE RPM RANGE 5000-6000 RPM

IGNITION SYSTEM PGM-IG

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE Unleaded Gasoline (86 octane)

FUEL TANK / FUEL LINE 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE FC-W 10W-30

OIL CAPACITY Please inquire.

LUBRICATION Wet Sump

ALTERNATOR 6-Amp (76 watt)

COOLING SYSTEM Water Cooled

SALTWATER RATED YES

GEAR RATIO 2.33:1

GEAR SHIFT Forward, Neutral, Reverse

PROPELLER 9.25″ Dia. X 8″ Pitch 4-Blade Aluminum

INTERNAL BATTERY NO

2018 Honda 9.9 Hp BF10DK3LH Outboard Motor

WHAT’S IN THE BOX ?

1 X Outboard Motor

1 X Outboard Tiller Handle

1 X Fuel Tank

1 X Quick Connect Fuel Line tilt switch

1 x Teleflex SL3 Throttle control Top or side Mount ? + Free Installation Universal Cables

1 X Outboard Warranty Card from manufacturer Valid 5 Years Depending on outboard type

1 X Standart Aluminum Propeller Depending on outboard Brands , type & Horse power.

1 X Trim limiter

3 X Gall Free Oil Depending on outboard Brands Yamalube, Honda Marine Oil, Mercury Premium Oil

1 X Stainless Outboard Anti-Theft

1 X Book Owner’s Manual Guide from manufacturer

1 X Ebook Installation Guide & And how to take care of the engine properly.

3 X Cable Protection System Length 800mm
