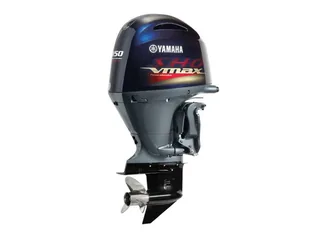

2017 Yamaha VF150X VMAX SHO Outboard Motor

2017 Yamaha VF150X VMAX SHO Outboard Motor?

Meet the next-gen ln-Line Four V MAX SHOs. Their advanced technology achieves the unthinkable-packing the signature VMAX SHO hole shot, midrange acceleration and super-high-output performance into ingeniously streamlined designs. With 16-valves. double overhead cams and electronic fuel injection, their next-gen tech packages are designed for maximum performance and efficient operation, and their DNA, undeniably V MAX SHO. On a bass or flats boat, or other performance hull, the four-stroke I•4 V MAX SHOs will deliver the exhilarating performance that anglers crave and the competition admires.

2017 Yamaha VF150X VMAX SHO Outboard Motor

- 2.8L High Output Four Cylinder

- Double Overhead Camshafts

- 4 Large Radius Valves Per Cylinder

- Variable Camshaft Timing

- 4 Independent Fuel Injectors

- Tuned Long Track Induction System

- Electronic Multi-Point Precision Fuel Injection

- Four-Into-One Exhaust

- Blow-By Gas Reburning System

- Offset Crankshaft

- Counterbalancing technology

- Compact, Lightweight Design

2017 Yamaha VF150X VMAX SHO Outboard Motor

Year 2017

Manufacturer Yamaha Marine

Model Name VF150X

Trim Name base

Generic Type (Primary) Four Stroke

Engine

Engine Type In-Line Four-Cylinder

Engine Power 150 HP @ 5500 RPM

Alternator (Output): 50 Amp

Displacement 2785cc (170.0 ci)

Gear Ratio (Primary) (28:14) 2.0:1

Lubrication Wet sump

Fuel Type Induction: EFI (DOHC) VCT

Ignition System: TCI Micro Computer

Oil Type (Recommended): Yamalube® 4-M (See Owner’s Manual)

Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 89)

Capacities

Oil capacity 4.5L/4.3L w/without filter

Range

Note Full Throttle RPM Range: 5000-6000 rpm

Dimensions

Length Shaft: 20″

Bore 3.78 in. (96 mm)

Stroke 3.79 in. (96.2 mm)

Weights

Dry Weight 489 lb (222 kg)

Features

Starter Electric w/PTT

Note Gear Shift: Forward, Neutral, Reverse

Features C.A.R.B. Rating: 3 Star

Note Ethanol Blend Limit: 10% Maximum

Intake Design Single Electronically Controlled Throttle Valve

Features Degree of Tilt: 70° | Degree of Trim: -4° through +16°

Cooling Thermostatic Control

Exhaust Through Propeller

Compression Ratio 10.3:1

Warranty

Warranty 3-year Pleasure, 3-year Government, 1-Year Commercial
