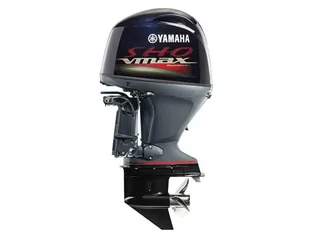

2017 Yamaha VF115 VMAX SHO Outboard Motor

Meet the next-gen ln-Line Four V MAX SHOs. Their advanced technology achieves the unthinkable-packing the signature VMAX SHO hole shot, midrange acceleration and super-high-output performance into ingeniously streamlined designs. With 16-valves. double overhead cams and electronic fuel injection, their next-gen tech packages are designed for maximum performance and efficient operation, and their DNA, undeniably V MAX SHO. On a bass or flats boat, or other performance hull, the four-stroke I·4 V MAX SHOs will deliver the exhilarating performance that anglers crave and the competition admires.

2017 Yamaha VF115 VMAX SHO Outboard Motor

- 1.8L High Output Four Cylinder

- Double Overhead Camshafts

- 4 Large Radius Valves Per Cylinder

- 4 Independent Fuel Injectors

- Tuned Long Track Induction System

- Electronic Multi-Point Precision Fuel Injection

- Four-Into-One Exhaust

- Blow-By Gas Reburning System

- Offset Crankshaft

- Counterbalancing technology

- Compact, Lightweight Design

2017 Yamaha VF115 VMAX SHO Outboard Motor

Year 2017

Manufacturer Yamaha Marine

Model Name VF115

Trim Name LA

Generic Type (Primary) Four Stroke

Engine

Engine Type In-Line Four Cylinder

Engine Power 115 HP @ 5500 RPM

Alternator (Output): 35 Amp

Displacement 1832cc (111.8 ci)

Gear Ratio (Primary) 2.15:1

Lubrication Wet sump

Fuel Type Induction: EFI (DOHC)

Ignition System: TCI Micro Computer

Oil Type (Recommended): Yamalube® 4-M (See Owner’s Manual)

Fuel Type (Recommended): Regular Unleaded (Minimum Pump Octane 87)

Capacities

Oil capacity 3.2 liters / 3.0 liters w/without filter

Range

Note Full Throttle RPM Range: 5300-6300 rpm

Dimensions

Length Shaft: 20″

Bore 3.19 in. (81 mm)

Stroke 3.5 in. (88.9 mm)

Weights

Dry Weight 377 lbs

Features

Features Degree of Tilt: 70° | Degree of Trim: -4° through +16°

Exhaust Through Propeller

Cooling Thermostatic Control

Features C.A.R.B. Rating: 3 Star

Note Ethanol Blend Limit: 10% Maximum

Intake Design Mechanical Single Throttle Valve

Note Gear Shift: Forward, Neutral, Reverse

Compression Ratio 10.0:1

Starter Electric w/PTT

Warranty

Warranty 3-year Pleasure, 3-year Government, 1-Year Commercial
