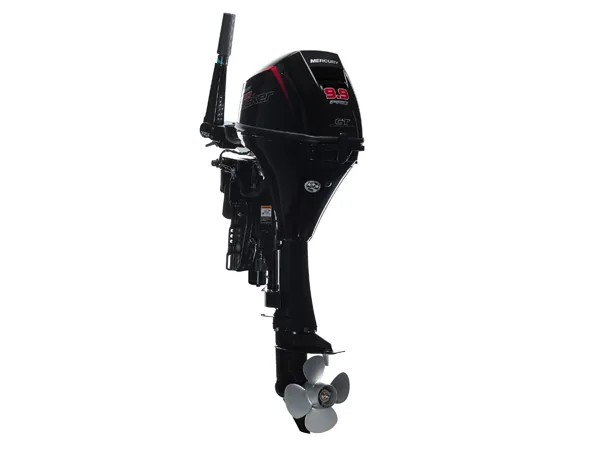

2017 Mercury 9.9 HP 9.9EXLHPT-CT-PK Outboard Motor

The Mercury 9.9 HP Outboard motor with Command Thrust delivers the power, thrust, and control that wider, heavier boats demand. A 20 % larger prop increases control and a taller gearcase puts the prop deeper below turbulent water for improved performance. A low 2.42:1 gear ratio and high thrust propeller make the Mercury 9.9 outboard engine an excellent choice for sailboat and trolling/kicker applications. The Command Thrust over sized anti-ventilation plate prevents air from being drawn into the propeller, further enhancing efficiency and performance. The 9.9 HP Mercury Outboard Motor model: 9.9EXLHPT-CT-PK is equipped with an extra long 25 inch shaft and Mercury’s 3 year warranty.

2017 Mercury 9.9 HP 9.9EXLHPT-CT-PK Outboard Motor

- Compact and Lightweight
- Designed for Heavy Applications
- CommandThrust Lower Unit (2.42:1 Gear Ratio)
- High Thrust Propeller
- Oversized Anti-Ventilation Plate
- Electric Start + 12V 76W 6A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Heavy Duty Transom Mounting Bracket
- Power Operated Tilt (Range: -4° to 75°)
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

2017 Mercury 9.9 HP 9.9EXLHPT-CT-PK Outboard Motor

Model 9.9EXLHPT-CT-PK

Model Year 2017

SKU 9.9EXLHPT-CT-PK-17

Weight 114.0000

Manufacturer Mercury

Country of Manufacture Japan

Horsepower 9.9hp

Shaft Length 25″ (Extra Long)

Steering Tiller

Starting Electric

Trim & Tilt Power Tilt

Fuel Delivery Carburetor

Fuel Tank External

Cylinder(s) 2

Displacement 208 cc (12.8 cubic inches)

Bore and Stroke 55 x 44 mm (2.16 x 1.73 inches)

Full Throttle RPM Range 5000-6000

Ignition System Digital CD Ignition w/Electronic Spark Advance

Induction Scavenging SOHC

Valves per Cylinder 2

Fuel Type 87 Octane (up to 10% ethanol content)

Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

Oil Type SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

Oil Capacity 27 fl. Oz. (800 ml)

Lubrication Trochoid Pump

Alternator 12V 76W 6A (standard on electric start models)

Cooling System Water-Cooled, Thermostatically Controlled

Saltwater Rated YES

Gear Ratio 2.42:1 Command Thrust Gearcase

Gear Shift Forward-Neutral-Reverse (shift in tiller handle)

Propeller Command Thrust 4-Blade High Thrust Aluminum Propeller

Internal Battery No

2017 Mercury 9.9 HP 9.9EXLHPT-CT-PK Outboard Motor

What’s in the box?

- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- 4-Blade Aluminum Prop
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
