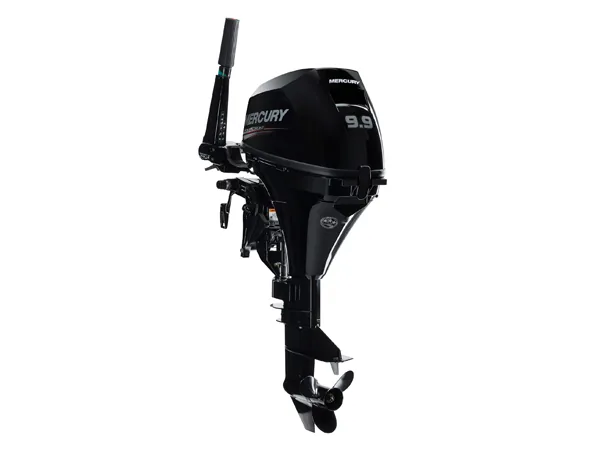

2017 Mercury 9.9 HP 9.9ELH Outboard Motor

The portable Mercury 9.9hp outboard motor is lightweight, compact, and powerful. Mercury model #: 9.9ELH comes equipped with an electric start and a 20 inch shaft, auto ratchet trim, and multi function tiller control. The 9.9 ELH is a great choice for long shaft jon boats, skiffs, and small pontoons as well as sailboat power. The Mercury 9.9 HP outboard engine is a twin-cylinder four-stroke that delivers smooth, quiet, fuel efficient operation with the reliability that Mercury is known for. Mercury Marine provides a 3 year factory warranty that begins the date of purchase.

2017 Mercury 9.9 HP 9.9ELH Outboard Motor

- Compact and Lightweight
- Electric Start + 12V 76W 6A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Trim System (5 positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- 3.2 Gallon Fuel Tank and Fuel Line
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

2017 Mercury 9.9 HP 9.9ELH Outboard Motor

Model 9.9ELH

Model Year 2017

SKU 9.9ELH-17

Weight 93.0000

Manufacturer Mercury

Country of Manufacture Japan

Horsepower 9.9hp

Shaft Length 20″ (Long)

Steering Tiller

Starting Electric

Trim & Tilt Manual

Fuel Delivery Carburetor

Fuel Tank External

Cylinder(s) 2

Displacement 208 cc (12.8 cubic inches)

Bore and Stroke 55 x 44 mm (2.16 x 1.73 inches)

Full Throttle RPM Range 5000-6000

Ignition System Digital CD Ignition w/Electronic Spark Advance

Induction Scavenging SOHC

Valves per Cylinder 2

Fuel Type 87 Octane (up to 10% ethanol content)

Fuel Tank / Fuel Line 3.2 Gal. Fuel Tank + Quick Connect Fuel Line

Oil Type SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

Oil Capacity 27 fl. Oz. (800 ml)

Lubrication Trochoid Pump

Alternator 12V 76W 6A (standard on electric start models)

Cooling System Water-Cooled, Thermostatically Controlled

Saltwater Rated YES

Gear Ratio 2.08:1

Gear Shift Forward-Neutral-Reverse (shift in tiller handle)

Propeller 8.5″ Diameter X 8.0″ Pitch 3-Blade Aluminum

Internal Battery No

2017 Mercury 9.9 HP 9.9ELH Outboard Motor

What’s in the box?

- Fuel Tank (3.2 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
