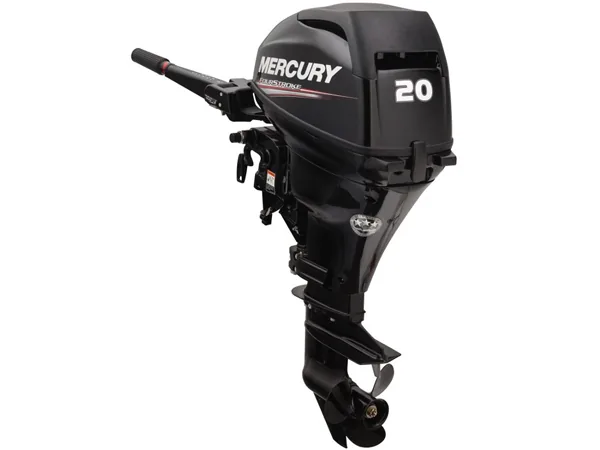

2017 Mercury 20 HP 20ELH Outboard Motor

The Mercury 20 HP outboard motor model 20ELH comes with the convenient features you want: Electric start motor, 20 inch long shaft, multi-function tiller handle, heavy duty transom bracket, and vibration absorbing mounts. The intake manifold design provides fast acceleration, while the large displacement and prop provide planes quickly planes your boat. Between the two the Mercury 20 HP is going to get you where you need to be faster. Mercury Marine Outboards are legendary for reliability and the Mercury 3 year factory warranty make this outboard motor an affordable engine!

2017 Mercury 20 HP 20ELH Outboard Motor

- Large Displacement Powerhead (351cc)
- Electric Start + 12V 138W 12A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- Tuned Intake for Quick Acceleration
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Auto Ratchet Tilt (6 manual trim positions)
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- “Wishbone” Mount for Reduced Vibration
- 6.6 Gallon Fuel Tank and Fuel Line
- Easy Maintenance Canister Oil Filter
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 3-Year Warranty

2017 Mercury 20 HP 20ELH Outboard Motor

Model 20ELH

Model Year 2017

SKU 20ELH-17

Weight 124.0000

Manufacturer Mercury

Country of Manufacture Japan

Horsepower 20hp

Shaft Length 20″ (Long)

Steering Tiller

Starting Electric

Trim & Tilt Manual

Fuel Delivery Carburetor

Fuel Tank External

Cylinder(s) 2

Displacement 351 cc (21.4 cubic inches)

Bore and Stroke 61 x 60 mm (2.40 x 2.36 inches)

Full Throttle RPM Range 5400-6100

Ignition System Digital CD Ignition w/Electronic Spark Advance

Induction Scavenging SOHC

Valves per Cylinder 2

Fuel Type 87 Octane (up to 10% ethanol content)

Fuel Tank / Fuel Line 6.6 Gal. Fuel Tank + Quick Connect Fuel Line

Oil Type SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

Oil Capacity 1 Quart (1000 ml)

Lubrication Trochoid Pump

Alternator 12V 138W 12A (standard on electric start models)

Cooling System Water-Cooled, Thermostatically Controlled

Saltwater Rated YES

Gear Ratio 2.15:1

Gear Shift Forward-Neutral-Reverse (shift in tiller handle)

Propeller 9.2″ Diameter X 9.1″ Pitch 3-Blade Aluminum

Internal Battery No

2017 Mercury 20 HP 20ELH Outboard Motor

What’s in the box?

- Fuel Tank (6.6 gallon)
- Quick Connect Fuel Line
- Mercury 3-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
