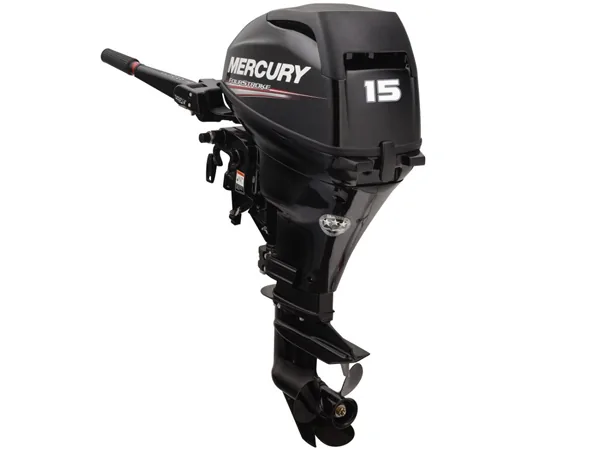

2017 Mercury 15 HP 15ELH Outboard Motor

State of the art design of the 15 HP Mercury outboard motor powerhead creates the low-end torque needed for power and fast planing making it an excellent source of power for medium to larger sized jon boats, skiffs, and inflatable boats. Mercury’s multi-function tiller handle is just one of the exclusive features found on Mercury 15hp outboard engines. Mercury Outboard Model: 15ELH is a 15 HP outboard motor, electric start with a 20 inch long shaft. Mercury outboard engines surpass industry standards and deliver power and fuel economy.

2017 Mercury 15 HP 15ELH Outboard Motor

- Large Displacement Powerhead (351cc)
- Electric Start + 12V 138W 12A Alternator
- Thru-Cowl Backup Manual Start
- Digital CD Ignition with Spark Advance
- Tuned Intake for Quick Acceleration
- High Grade Marine Alloy Construction
- Stainless Steel Water Pump Housing
- Zinc Coated Water Passages
- Rated for Saltwater Use
- Sacrificial Zinc Anodes and Trim Tab
- Tiller Integrated F-N-R Gear Shifting
- Adjustable Steering Tension Control
- Twist-Grip Throttle with Tension Control
- Thermostat Controlled Water Cooling
- Shallow Water Drive
- Quiet Through-Propeller-Hub Exhaust
- “Wishbone” Mount for Reduced Vibration
- 6.6 Gallon Fuel Tank and Fuel Line
- Easy Maintenance Canister Oil Filter
- Start-In-Gear Protection
- Low Oil Pressure Warning Indicator
- ESG Over-Rev Protection
- Safety Lanyard Stop Switch
- Owner’s Manual
- Mercury Marine 5-Year Warranty

2017 Mercury 15 HP 15ELH Outboard Motor

Model 15ELH

Model Year 2017

SKU 15ELH-17

Weight 124.0000

Manufacturer Mercury

Country of Manufacture Japan

Horsepower 15hp

Shaft Length 20″ (Long)

Steering Tiller

Starting Electric

Trim & Tilt Manual

Fuel Delivery Carburetor

Fuel Tank External

Cylinder(s) 2

Displacement 351 cc (21.4 cubic inches)

Bore and Stroke 61 x 60 mm (2.40 x 2.36 inches)

Full Throttle RPM Range 5000-6000

Ignition System Digital CD Ignition w/Electronic Spark Advance

Induction Scavenging SOHC

Valves per Cylinder 2

Fuel Type 87 Octane (up to 10% ethanol content)

Fuel Tank / Fuel Line 6.6 Gal. Fuel Tank + Quick Connect Fuel Line

Oil Type SAE 10W-30 (Mercury 4-Stroke Outboard Oil)

Oil Capacity 1 Quart (1000 ml)

Lubrication Trochoid Pump

Alternator 12V 138W 12A (standard on electric start models)

Cooling System Water-Cooled, Thermostatically Controlled

Saltwater Rated YES

Gear Ratio 2.15:1

Gear Shift Forward-Neutral-Reverse (shift in tiller handle)

Propeller 9.2″ Diameter X 9.1″ Pitch 3-Blade Aluminum

Internal Battery No

2017 Mercury 15 HP 15ELH Outboard Motor

What’s in the box?

- Fuel Tank (6.6 gallon)
- Quick Connect Fuel Line
- Mercury 5-Year Warranty
- Aluminum Propeller
- Mercury 4-Stroke Oil
- Owner’s Manual & Tool Kit
