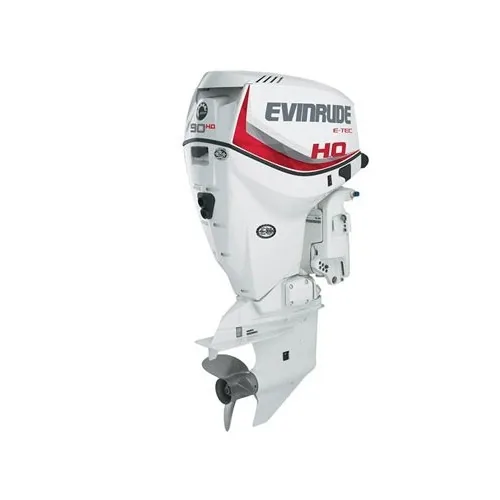

2016 EVINRUDE E90HSL E-TEC OUTBOARD MOTOR

2016 Evinrude E90HSL E-TEC Outboard Motor

The H.O. Series. Blurring the line between boating and aviation. Like pushing limits? Then take a closer look at our High Output Series. Because they push limits about as far as they can go – and come with everything it takes to handle it.

Specifications

Model: E90HSL

Weight: 390 lb. / 177 kg

Shaft Length: 20 in. / 508 mm

Color: White

Gear Ratio: 2.00:1

Starting Method: Electric

Trim Method: Trac-1 power trim and Tilt

Steering: Remote

Limited Warranty: 3-Year, Non-declining

Engine type: V4 60° E-TEC DI

Displacement: 105.4 cu.in./1726 cc

Recommended fuel: 87 Octane

Emissions compliance: EPA 2013, CARB 3 STAR, European Union

Recommended Oil: Evinrude/Johnson XD-100 Oil

Propshaft HP: 90 hp (67 kW) @ 5000 rpm

Full Throttle RPM Range: 5500-6000 rpm

Alternator output: 133 amps total/50 net dedicated

Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode

Lubrication: Multi-point targeted oiling

Bore x Stroke: 3.601 x 2.588 in. / 91 x 66 mm

Year
2016

Manufacturer
Evinrude

Model
E90HSL – 90 HO White, 20″ Shaft

Style
Outboard

Dimensions

Shaft Length
20 in. (508 mm)

Weight
390 lb. (177 kg)

Engine

Engine Type
V4 60 deg. E-TEC DI

Bore x Stroke
3.601 x 2.588 in. (91 x 66 mm)

Displacement
105.4 cu.in. (1726 cc)

Starting
Electric

General

Trim Method
Trac-1 power trim and Tilt

Shaft Rotation

Propshaft Horsepower
90 hp (67 kW)

Full Throttle Operating Range
5500-6000 rpm

Gear Ratio / Shift
2.00:1

Fuel Induction
E-TEC DI w/ Stratified low RPM combustion mode

Alternator
133 amps total/50 net dedicated

Cooling

Steering
Remote

Warranty
3-Year, Non-declining
