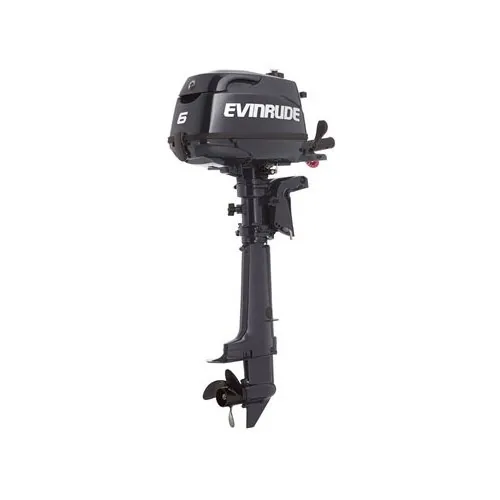

2016 EVINRUDE E6RG4 PORTABLE OUTBOARD MOTOR

2016 Evinrude E6RG4 Portable Outboard Motor

Specifications

Model: E6RG4

Weight: 57 lb. / 26 kg

Shaft Length: 15 in. / 381 mm

Color: Graphite

Gear Ratio: 2.15:1

Starting Method: Manual

Trim Method: Manual Trim

Steering: Tiller

Limited Warranty: 3 Years

Engine type: 1 Cylinder

Displacement: 7.5 cu in./123 cc

Recommended fuel: Unleaded Gasoline (87 Octane)

Emissions compliance: CARB 3 Star, U.S EPA

Recommended Oil: NMMA Certified FC-W® 4-stroke oil SAE 10W-30/40 (SF, SG, SH, SJ)

Propshaft HP: 6 hp

Full Throttle RPM Range: 5000-6000 rpm

Alternator output: Optional 12V, 60W, 5A

Fuel induction: Carbureted

Lubrication: Sump

Bore x Stroke: 2.32 x 1.77 in. / 59 x 45 mm

Evinrude Portable 4-Stroke Features

The new Evinrude portable 4 strokes have a lot to offer anyone looking for the best small engines available.

Compact: These engines have many features to offer in one small package. From an integral fuel tank to a flow thru prop for quiet running, these portables have everything you need to make your adventure on the water more enjoyable.

Easy: With CD ignition and a fast-idle choke system for easier & faster starting, as well as adjustable steering friction for reduced steering effort and fatigue, Evinrude portable engines make boating that much easier.

Simple: Operating a portable outboard shouldn’t be complicated. With front mount shift levers, shallow water drive and power tilt, these engines are made to make your next trip on the water the best ever!

Engine

Engine Type
1 Cylinder

Bore x Stroke
2.32 x 1.77 in. (59 x 45 mm)

Displacement
7.5 cu in. (123 cc)

Starting
Manual

Dimensions

Shaft Length
15 in. (381 mm)

Weight
57 lb. (26 kg)

General

Trim Method
Manual Trim

Propshaft Horsepower
6 hp

Full Throttle Operating Range
5000-6000 rpm

Gear Ratio / Shift
2.15:1

Fuel Induction
Carbureted

Alternator
Optional 12V, 60W, 5A

Steering
Tiller

Warranty
3 Years
