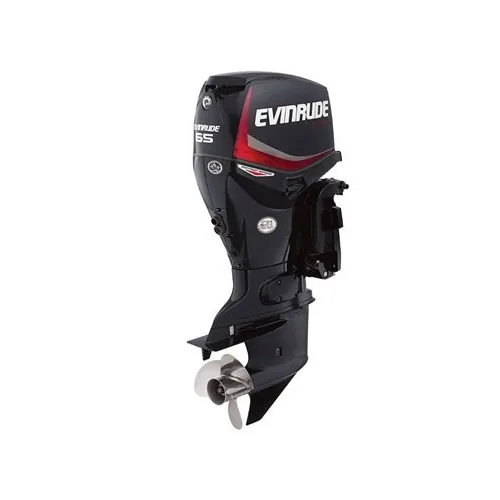

2016 EVINRUDE E65GL E-TEC OUTBOARD MOTOR

2016 Evinrude E65GL E-TEC Outboard Motor

This is the first outboard engine built specifically to address the needs of pontoon owners. New features include rubber motor mounts to reduce vibration transmitted to the boat and special gear ratios and large displacement cylinder blocks which provide abundant torque and high thrust. In addition, the Pontoon Series still offers all of the best-in-class features of the entire Evinrude E-TEC lineup.

Specifications

Model: E65GL

Weight: 320 lb. / 145 kg

Shaft Length: 20 in. / 508 mm

Color: Graphite

Gear Ratio: 2.36:1 High Speed

Starting Method: Electric

Trim Method: Trac-1 power trim and Tilt

Steering: Remote

Limited Warranty: 3-Year, Non-declining

Engine type: Inline 3-Cylinder E-TEC DI

Displacement: 79.1 cu in./1295 cc

Recommended fuel: 87 Octane

Emissions compliance: EPA 2013, CARB 3 STAR, European Union

Recommended Oil: Evinrude/Johnson XD-100 Oil

Propshaft HP: 65 hp (48.47 kW) @ 5000 rpm

Full Throttle RPM Range: 5000-5500 rpm

Alternator output: 81 Amps Total/25 Net Dedicated

Fuel induction: E-TEC Direct Injection with stratified low RPM combustion mode

Lubrication: Multi-point Targeted Oiling

Bore x Stroke: 3.601 x 2.588 in. / 91 x 66 mm

Year
2016

Manufacturer
Evinrude

Model
E65GL – 65 HP Graphite

Style
Outboard

Dimensions

Shaft Length
20 in. (508 mm)

Weight
320 lb. (145 kg)

Engine

Engine Type
Inline 3-Cylinder E-TEC DI

Bore x Stroke
3.601 x 2.588 in. (91 x 66 mm)

Displacement
79.1 cu in. (1295 cc)

Starting
Electric

General

Trim Method
Trac-1 power trim and Tilt

Shaft Rotation

Propshaft Horsepower
65 hp (48.47 kW) @ 5000 rpm

Full Throttle Operating Range
5000-5500 rpm

Gear Ratio / Shift
2.36:1 High Speed

Fuel Induction
E-TEC Direct Injection with stratified low RPM combustion mode

Alternator
81 Amps Total/25 Net Dedicated

Cooling

Steering
Remote

Warranty
3-Year, Non-declining
