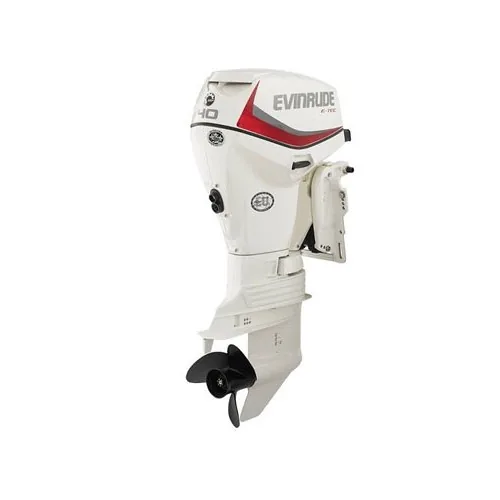

2016 EVINRUDE E40DSL E-TEC OUTBOARD MOTOR

2016 Evinrude E40DRGL E-TEC Outboard Motor

More in the three-cylinder class. Lighter and tougher than the other guys with more electrical output. And with the incredible Evinrude tiller, you’re in total control of your engine. And your time on the water.

Specifications

Model: E40DRGL

Weight: 232 lb. / 105 kg

Shaft Length: 20 in. / 508 mm

Color: Graphite

Gear Ratio: 2.9:1

Starting Method: Rope

Trim Method: Manual Tilt

Steering: Tiller

Limited Warranty: 3 year, non-declining

Engine type: Inline 2-Cylinder E-TEC DI

Displacement: 52.7 cu in./863 cc

Recommended fuel: 87 Octane

Emissions compliance: CARB 3 Star, U.S EPA, European Union

Recommended Oil: Evinrude/Johnson XD100™ Oil

Propshaft HP: 40 hp (30 kW) @ 5500 rpm

Full Throttle RPM Range: 5500-6000 rpm

Alternator output: 81 Amps Total Output/ 25 Amps Net Dedicated

Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode

Lubrication: Multi-point, targeted oiling

Bore x Stroke: 3.6 x 2.588 in. / 91 x 66 mm

Year
2016

Manufacturer
Evinrude

Model
E40DRGL – 40-HP Graphite, 20″ Shaft, Tiller Steer

Style
Outboard

Dimensions

Shaft Length
20 in. (508 mm)

Weight
232 lb. (105 kg)

Engine

Engine Type
Inline 2-Cylinder E-TEC DI

Bore x Stroke
3.6 x 2.588 in. (91 x 66 mm)

Displacement
52.7 cu in. (863 cc)

Starting
Rope

General

Trim Method
Manual Tilt

Shaft Rotation

Propshaft Horsepower
40 hp (30 kW) @ 5500 rpm

Full Throttle Operating Range
5500-6000 rpm

Gear Ratio / Shift
2.9:1

Fuel Induction
E-TEC DI w/ Stratified low RPM combustion mode

Alternator
81 Amps Total Output/ 25 Amps Net Dedicated

Cooling

Steering
Tiller

Warranty
3 year, non-declining
