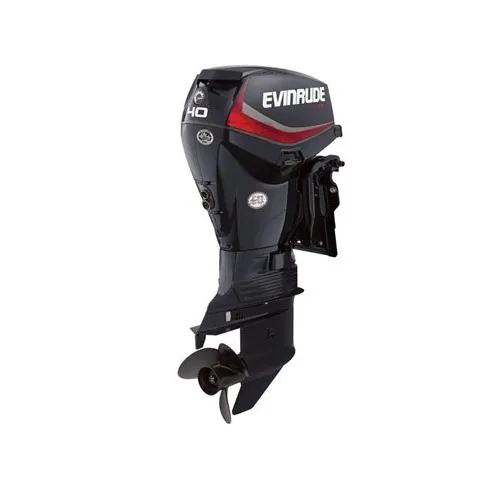

2016 EVINRUDE E40DGTL E-TEC OUTBOARD MOTOR

2016 Evinrude E40DGTL E-TEC Outboard Motor

Specifications

Model: E40DGTL

Weight: 250 lb. / 113 kg

Shaft Length: 20 in. / 508 mm

Color: Graphite

Gear Ratio: 2.9:1

Starting Method: Electric

Trim Method: FasTrak™ Power Trim and Tilt

Steering: Tiller

Limited Warranty: 3 year, non-declining

Engine type: Inline 2-Cylinder E-TEC DI

Displacement: 52.7 cu in./863 cc

Recommended fuel: 87 Octane

Emissions compliance: CARB 3 Star, U.S EPA, European Union

Recommended Oil: Evinrude/Johnson XD100™ Oil

Propshaft HP: 40 hp (30 kW) @ 5500 rpm

Full Throttle RPM Range: 5500-6000 rpm

Alternator output: 81 Amps Total Output/ 25 Amps Net Dedicated

Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode

Lubrication: Multi-point, targeted oiling

Bore x Stroke: 3.6 x 2.588 in. / 91 x 66 mm

Year
2016

Manufacturer
Evinrude

Model
E40DGTL – 40-HP Graphite, 20″ Shaft, Tiller Steer

Style
Outboard

Dimensions

Shaft Length
20 in. (508 mm)

Weight
250 lb. (113 kg)

Engine

Engine Type
Inline 2-Cylinder E-TEC DI

Bore x Stroke
3.6 x 2.588 in. (91 x 66 mm)

Displacement
52.7 cu in. (863 cc)

Starting
Electric

General

Trim Method
FasTrak™ Power Trim and Tilt

Shaft Rotation

Propshaft Horsepower
40 hp (30 kW) @ 5500 rpm

Full Throttle Operating Range
5500-6000 rpm

Gear Ratio / Shift
2.9:1

Fuel Induction
E-TEC DI w/ Stratified low RPM combustion mode

Alternator
81 Amps Total Output/ 25 Amps Net Dedicated

Cooling

Steering
Tiller

Warranty
3 year, non-declining
