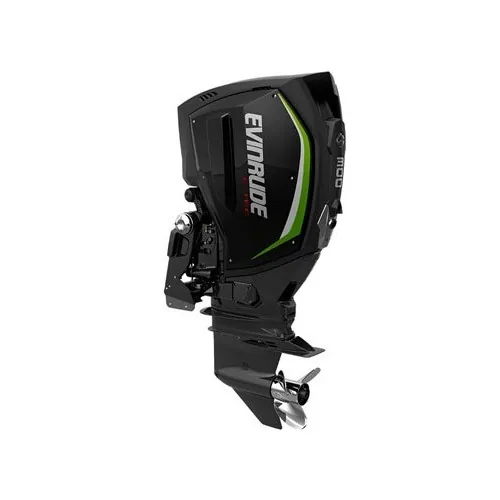

2016 EVINRUDE E300XCU E-TEC OUTBOARD MOTOR

2016 Evinrude E300XCU E-TEC Outboard Motor

Introducing a revolutionary concept in outboards – a choice. Now, choose cutting-edge over commonplace. Choose more torque over more talk. Choose more time on the water over more time in the shop. Choose the outboard that performs, and looks like no other outboard in the world.

Specifications

Model: E300XCU

Weight: 569 lb. / 258 kg

Shaft Length: 25 in. / 635 mm

Color: Slate Grey with over 400 Color Panel and Accent Combinations

Gear Ratio: 1.85:1

Starting Method: Electric

Trim Method: Trim and Tilt

Steering: Remote- Dynamic Power Steering and Integrated Hydraulic Steering
Common Elements

Limited Warranty: 5-Year Non Declining*, 5-Year Corrosion (* For North America, 3 years of BRP Limited Warranty plus 2 years of BRP Extended Service Terms B.E.S.T)

Engine type: V6 74° E-TEC D.I.

Displacement: 210 cu. in./3441 cc

Recommended fuel: 87 Octane

Emissions compliance: EPA 2013 CARB 3 STAR European Union

Recommended Oil: Evinrude/ Johnson XD-100 Oil

Propshaft HP: Factory Tuned for High Performance

Full Throttle RPM Range: 5400-6000 RPM

Alternator output: 133 Amps Total/ 50 net Dedicated/14 amps @ idle

Fuel induction: E-TEC Direct Injection with stratified low RPM combustion mode

Lubrication: Multi-point Targeted Oiling

Bore x Stroke: 3.854 x 3.000 in. / 98 x 76 mm

Year
2016

Manufacturer
Evinrude

Model
E300XCU – 300HP 25″ Shaft

Style
Outboard

Dimensions

Shaft Length
25 in. (635 mm)

Weight
569 lb. (258 kg)

Engine

Engine Type
V6 74° E-TEC D.I.

Bore x Stroke
3.854 x 3.000 in. (98 x 76 mm)

Displacement
210 cu. in. (3441 cc)

Starting
Electric

General

Trim Method
Trim and Tilt

Shaft Rotation

Propshaft Horsepower
Factory Tuned for High Performance

Full Throttle Operating Range
5400-6000 RPM

Gear Ratio / Shift
1.85:1

Fuel Induction
E-TEC Direct Injection with stratified low RPM combustion mode

Alternator
133 Amps Total/ 50 net Dedicated/14 amps @ idle

Cooling

Steering
Remote- Dynamic Power Steering and Integrated Hydraulic Steering

Warranty
5-Year Non Declining*, 5-Year Corrosion (* For North America, 3 years of BRP Limited Warranty plus 2 years of BRP Extended Service Terms B.E.S.T
