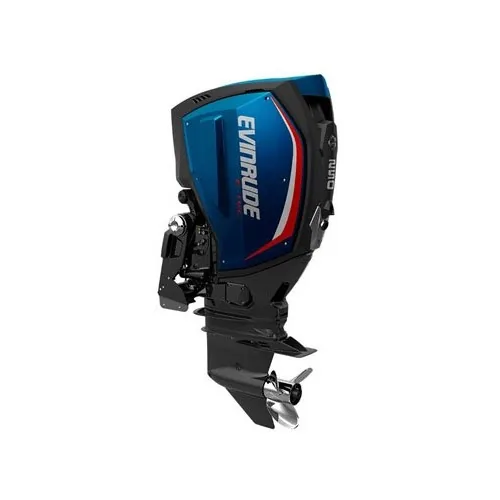

2016 EVINRUDE E250XH E-TEC OUTBOARD MOTOR

2016 Evinrude E250XH E-TEC Outboard Motor

Specifications

Model: E250XH

Weight: 558 lb. / 253 kg

Shaft Length: 25 in. / 635 mm

Color: Slate Grey with over 400 Color Panel and Accent Combinations

Gear Ratio: 1.85:1

Starting Method: Electric

Trim Method: Trim and Tilt

Steering: Remote- Dynamic Power Steering and integrated Hydraulic Steering

Common Elements

Limited Warranty: 5-Year Non Declining*, 5-Year Corrosion (* For North America, 3 years of BRP Limited Warranty plus 2 years of BRP Extended Service Terms B.E.S.T)

Engine type: V6 74° E-TEC D.I.

Displacement: 210 cu. in./3441 cc

Recommended fuel: 87 Octane

Emissions compliance: EPA 2013 CARB 3 STAR European Union

Recommended Oil: Evinrude/ Johnson XD-100 Oil

Propshaft HP: Factory Tuned for High Performance

Full Throttle RPM Range: 5400-6000 rpm

Alternator output: 133 Amps Total/ 50 net Dedicated/14 amps @ idle

Fuel induction: E-TEC Direct Injection with stratified low RPM combustion mode

Lubrication: Multi-point Targeted Oiling

Bore x Stroke: 3.854 x 3.000 in. / 98 x 76 mm

Year
2016

Manufacturer
Evinrude

Model
E250XH – 250 H.O. 25″ Shaft

Style
Outboard

Dimensions

Shaft Length
25 in. (635 mm)

Weight
558 lb. (253 kg)

Engine

Engine Type
V6 74° E-TEC D.I.

Bore x Stroke
3.854 x 3.000 in. (98 x 76 mm)

Displacement
210 cu in. (3441 cc)

Starting
Electric

General

Trim Method
Trim and Tilt

Shaft Rotation

Propshaft Horsepower
Factory Tuned for High Performance

Full Throttle Operating Range
5400-6000 rpm

Gear Ratio / Shift
1.85:1

Fuel Induction
E-TEC Direct Injection with stratified low RPM combustion mode

Alternator
133 Amps Total/ 50 net Dedicated/14 amps @ idle

Cooling

Steering
Remote- Dynamic Power Steering and integrated Hydraulic Steering

Warranty
5-Year Non Declining*, 5-Year Corrosion (* For North America, 3 years of BRP Limited Warranty plus 2 years of BRP Extended Service Terms B.E.S.T)
