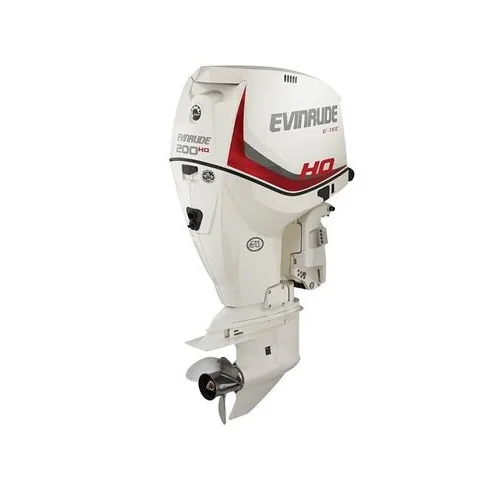

2016 EVINRUDE E200DHX E-TEC OUTBOARD MOTOR

2016 Evinrude E200DHX E-TEC Outboard Motor

The H.O. Series. Blurring the line between boating and aviation. Like pushing limits? Then take a closer look at our High Output Series. Because they push limits about as far as they can go – and come with everything it takes to handle it.

Specifications

Model: E200DHX

Weight: 524 lb. / 238 kg

Shaft Length: 25 in. / 635 mm

Color: White

Gear Ratio: 1.85:1

Starting Method: Electric

Trim Method: FasTrak™ Power Trim and Tilt

Steering: Remote

Limited Warranty: 3 year, non-declining

Engine type: V6 90 deg. E-TEC DI

Displacement: 200 cu.in./3279 cc

Recommended fuel: 87 Octane

Emissions compliance: CARB 3 Star, U.S EPA, European Union

Recommended Oil: Evinrude/Johnson XD100™ Oil

Propshaft HP: Factory Tuned for High Performance

Full Throttle RPM Range: 5250-6000 rpm

Alternator output: 133 Amps Total Output/ 50 Amps Net Dedicated

Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode

Lubrication: Multi-point, targeted oiling

Bore x Stroke: 3.854 x 2.858 in. / 98 x 73 mm

Year
2016

Manufacturer
Evinrude

Model
E200DHX – 200 HO White, 25″ Shaft

Style
Outboard

Dimensions

Shaft Length
25 in. (635 mm)

Weight
524 lb. (238 kg)

Engine

Engine Type
V6 90 deg. E-TEC DI

Bore x Stroke
3.854 x 2.858 in. (98 x 73 mm)

Displacement
200 cu.in. (3279 cc)

Starting
Electric

General

Trim Method
FasTrak™ Power Trim and Tilt

Shaft Rotation

Propshaft Horsepower
Factory Tuned for High Performance

Full Throttle Operating Range
5250-6000 rpm

Gear Ratio / Shift
1.85:1

Fuel Induction
E-TEC DI w/ Stratified low RPM combustion mode

Alternator
133 Amps Total Output/ 50 Amps Net Dedicated

Cooling

Steering
Remote

Warranty
3 year, non-declining
