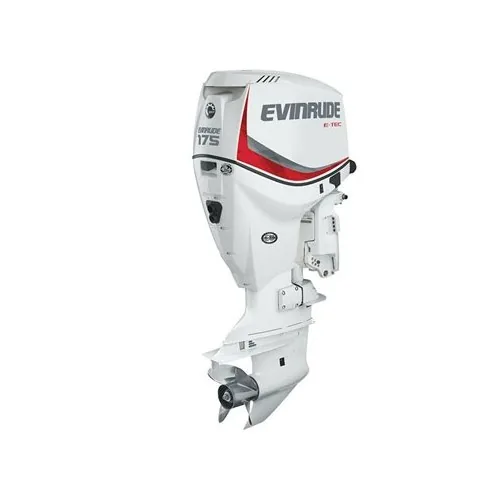

2016 EVINRUDE E175DSL E-TEC OUTBOARD MOTOR

2016 Evinrude E175DSL E-TEC Outboard Motor

Now even more horses. And all they want to do is run. Bigger engines. Bigger lead. More displacement, more torque, more top-end than anything in the V-6 class. Too much of a good thing? Not when you’re this good.

Specifications

Model: E175DSL

Weight: 418 lb. / 190 kg

Shaft Length: 20 in. / 508 mm

Color: White

Gear Ratio: 1.86:1

Starting Method: Electric

Trim Method: FasTrak™ Power Trim and Tilt

Steering: Remote

Limited Warranty: 3-Year, Non-Declining

Engine type: V6 60 deg. E-TEC DI

Displacement: 158.2 cu in./2592 cc

Recommended fuel: 87 Octane

Emissions compliance: CARB 3 Star, U.S EPA, European Union

Recommended Oil: Evinrude/Johnson XD100™ Oil

Propshaft HP: 175 hp (131 kW) @ 5350 rpm

Full Throttle RPM Range: 5300 – 6000 rpm

Alternator output: 133 Amps Total Output/ 50 Amps Net Dedicated

Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode

Lubrication: Multi-point, targeted oiling

Bore x Stroke: 3.601 x 2.588 in. / 91 x 66 mm

Year
2016

Manufacturer
Evinrude

Model
E175DSL – 175 HP White, 20″ Shaft

Style
Outboard

Dimensions

Shaft Length
20 in. (508 mm)

Weight
418 lb. (190 kg)

Engine

Engine Type
V6 60 deg. E-TEC DI

Bore x Stroke
3.601 x 2.588 in. (91 x 66 mm)

Displacement
158.2 cu in. (2592 cc)

Starting
Electric

General

Trim Method
FasTrak™ Power Trim and Tilt

Shaft Rotation

Propshaft Horsepower
175 hp (131 kW) @ 5350 rpm

Full Throttle Operating Range
5300 – 6000 rpm

Gear Ratio / Shift
1.86:1

Fuel Induction
E-TEC DI w/ Stratified low RPM combustion mode

Alternator
133 Amps Total Output/ 50 Amps Net Dedicated

Cooling

Steering
Remote

Warranty
3-Year, Non-Declinin
