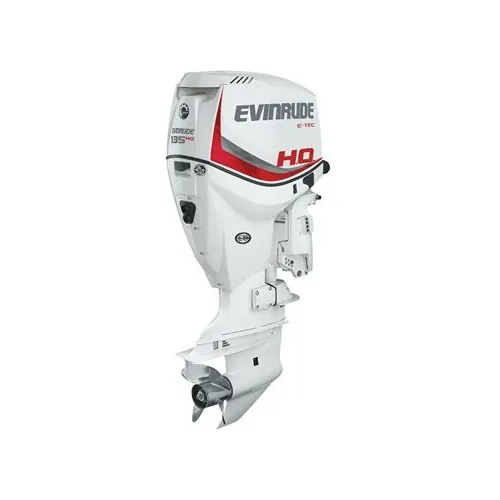

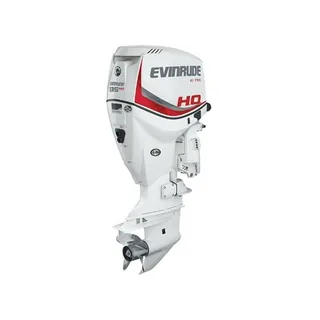

2016 EVINRUDE E135HCX E-TEC OUTBOARD MOTOR

2016 Evinrude E135HCX E-TEC Outboard Motor

The H.O. Series. Blurring the line between boating and aviation. Like pushing limits? Then take a closer look at our High Output Series. Because they push limits about as far as they can go – and come with everything it takes to handle it.

Specifications

Model: E135HCX

Weight: 433 lb. / 196 kg

Shaft Length: 25 in. / 635 mm

Color: White

Gear Ratio: 1.85:1

Starting Method: Electric

Trim Method: FasTrak™ Power Trim and Tilt

Steering: Remote

Limited Warranty: 3-Year, Non-Declining

Engine type: V6 60 deg. E-TEC DI

Displacement: 158.2 cu.in./2592 cc

Recommended fuel: 87 Octane

Emissions compliance: CARB 3 Star, U.S EPA, European Union

Recommended Oil: Evinrude/Johnson XD100™ Oil

Propshaft HP: Factory Tuned for High Performance

Full Throttle RPM Range: 5300-6000 rpm

Alternator output: 133 Amps Total Output/ 50 Amps Net Dedicated

Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode

Lubrication: Pinpoint oiling

Bore x Stroke: 3.6 x 2.588 in. / 91 x 66 mm

Year
2016

Manufacturer
Evinrude

Model
E135HCX – 135 HO White, 25″ Shaft

Style
Outboard

Dimensions

Shaft Length
25 in. (635 mm)

Weight
433 lb. (196 kg)

Engine

Engine Type
V6 60 deg. E-TEC DI

Bore x Stroke
3.6 x 2.588 in. (91 x 66 mm)

Displacement
158.2 cu.in. (2592 cc)

Starting
Electric

General

Trim Method
FasTrak™ Power Trim and Tilt

Shaft Rotation

Propshaft Horsepower
Factory Tuned for High Performance

Full Throttle Operating Range
5300-6000 rpm

Gear Ratio / Shift
1.85:1

Fuel Induction
E-TEC DI w/ Stratified low RPM combustion mode

Alternator
133 Amps Total Output/ 50 Amps Net Dedicated

Cooling

Steering
Remote

Warranty
3-Year, Non-Declining
