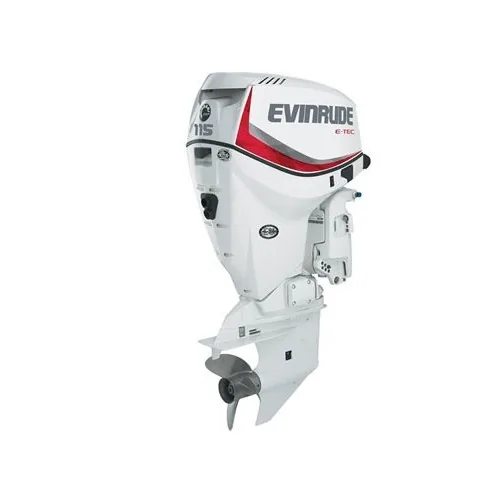

2016 EVINRUDE E115SNL E-TEC OUTBOARD MOTOR

2016 Evinrude E115SNL E-TEC Outboard Motor

This is the first outboard engine built specifically to address the needs of pontoon owners. New features include rubber motor mounts to reduce vibration transmitted to the boat and special gear ratios and large displacement cylinder blocks which provide abundant torque and high thrust. In addition, the Pontoon Series still offers all of the best-in-class features of the entire Evinrude E-TEC lineup.

Specifications

Model: E115SNL

Weight: 390 lb. / 177 kg

Shaft Length: 20 in. / 508 mm

Color: White

Gear Ratio: 2.44:1

Starting Method: Electric

Trim Method: FasTrak™ Power Trim and Tilt

Steering: Remote

Limited Warranty: 3-Year, Non-declining

Engine type: V4 60 deg. E-TEC DI

Displacement: 105.4 cu in./1726 cc

Recommended fuel: 87 Octane

Emissions compliance: CARB 3 Star, U.S EPA, European Union

Recommended Oil: Evinrude/Johnson XD100™ Oil

Propshaft HP: 115 hp (86 kW) @ 5750 rpm

Full Throttle RPM Range: 5500-6000 rpm

Alternator output: 133 Amps Total Output/ 50 Amps Net Dedicated

Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode

Lubrication: Multi-point, targeted oiling

Bore x Stroke: 3.6 x 2.588 in. / 91 x 66 mm

Year
2016

Manufacturer
Evinrude

Model
E115SNL – 115 HP White

Style
Outboard

Dimensions

Shaft Length
20 in. (508 mm)

Weight
390 lb. (177 kg)

Engine

Engine Type
V4 60 deg. E-TEC DI

Bore x Stroke
3.6 x 2.588 in. (91 x 66 mm)

Displacement
105.4 cu in. (1726 cc)

Starting
Electric

General

Trim Method
FasTrak™ Power Trim and Tilt

Shaft Rotation

Propshaft Horsepower
115 hp (86 kW) @ 5750 rpm

Full Throttle Operating Range
5500-6000 rpm

Gear Ratio / Shift
2.44:1

Fuel Induction
E-TEC DI w/ Stratified low RPM combustion mode

Alternator
133 Amps Total Output/ 50 Amps Net Dedicated

Cooling

Steering
Remote

Warranty
3-Year, Non-declinin
