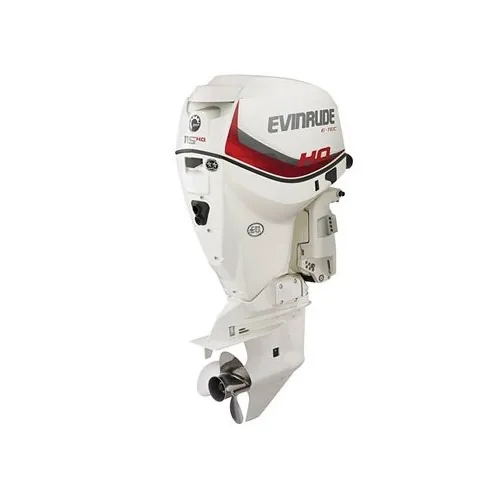

2016 EVINRUDE A115SHX E-TEC OUTBOARD MOTOR

<p>2016 Evinrude A115SHX E-Tec Outboard Motor</p> <p>The H.O. Series. Blurring the line between boating and aviation. Like pushing limits? Then take a closer look at our High Output Series. Because they push limits about as far as they can go – and come with everything it takes to handle it.</p> <p>Specifications</p> <p>Model: A115SHX</p> <p>Weight: 405 lb. / 184 kg</p> <p>Shaft Length: 25 in. / 635 mm</p> <p>Color: White</p> <p>Gear Ratio: 2.44:1</p> <p>Starting Method: Electric</p> <p>Trim Method: Trac-1 Power Trim and Tilt</p> <p>Steering: Remote</p> <p>Limited Warranty: 3-Year, Non-Declining</p> <p>Engine type: V4 60 deg. E-TEC DI</p> <p>Displacement: 105 cu.in./1726 cc</p> <p>Recommended fuel: 87 Octane</p> <p>Emissions compliance: CARB 2 Star, U.S EPA</p> <p>Recommended Oil: Evinrude/Johnson XD100™ Oil</p> <p>Propshaft HP: 115 hp (86 kW) @ 5750 rpm</p> <p>Full Throttle RPM Range: 5500-6000 rpm</p> <p>Alternator output: 133 Amps Total Output/ 50 Amps Net Dedicated</p> <p>Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode</p> <p>Lubrication: Multi-point, targeted oiling</p> <p>Bore x Stroke: 3.6 x 2.588 in. / 91 x 66 mm</p> <p>Year<br>2016</p> <p>Manufacturer<br>Evinrude</p> <p>Model<br>A115SHX – 115 HO White, 25″ Shaft</p> <p>Style<br>Outboard</p> <p>Dimensions</p> <p>Shaft Length<br>25 in. (635 mm)</p> <p>Weight<br>405 lb. (184 kg)</p> <p>Engine</p> <p>Engine Type<br>V4 60 deg. E-TEC DI</p> <p>Bore x Stroke<br>3.6 x 2.588 in. (91 x 66 mm)</p> <p>Displacement<br>105 cu.in. (1726 cc)</p> <p>Starting<br>Electric</p> <p>General</p> <p>Trim Method<br>Trac-1 Power Trim and Tilt</p> <p>Shaft Rotation</p> <p>Propshaft Horsepower<br>115 hp (86 kW)</p> <p>Full Throttle Operating Range<br>5500-6000 rpm</p> <p>Gear Ratio / Shift<br>2.44:1</p> <p>Fuel Induction<br>E-TEC DI w/ Stratified low RPM combustion mode</p> <p>Alternator<br>133 Amps Total Output/ 50 Amps Net Dedicated</p> <p>Cooling</p> <p>Steering<br>Remote</p> <p>Warranty<br>3-Year, Non-Declining</p> <p>Specifications</p> <p>Model: A115SHL</p> <p>Weight: 390 lb. / 177 kg</p> <p>Shaft Length: 20 in. / 508 mm</p> <p>Color: White</p> <p>Gear Ratio: 2.44:1</p> <p>Starting Method: Electric</p> <p>Trim Method: Trac-1 Power Trim and Tilt</p> <p>Steering: Remote</p> <p>Limited Warranty: 3-Year, Non-Declining</p> <p>Engine type: V4 60 deg. E-TEC DI</p> <p>Displacement: 105 cu.in./1726 cc</p> <p>Recommended fuel: 87 Octane</p> <p>Emissions compliance: CARB 2 Star, U.S EPA</p> <p>Recommended Oil: Evinrude/Johnson XD100™ Oil</p> <p>Propshaft HP: 115 hp (86 kW) @ 5750 rpm</p> <p>Full Throttle RPM Range: 5500-6000 rpm</p> <p>Alternator output: 133 Amps Total Output/ 50 Amps Net Dedicated</p> <p>Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode</p> <p>Lubrication: Multi-point, targeted oiling</p> <p>Bore x Stroke: 3.6 x 2.588 in. / 91 x 66 mm</p> <p>Year<br>2016</p> <p>Manufacturer<br>Evinrude</p> <p>Model<br>A115SHL – 115 HO White, 20″ Shaft</p> <p>Style<br>Outboard</p> <p>Dimensions</p> <p>Shaft Length<br>20 in. (508 mm)</p> <p>Weight<br>390 lb. (177 kg)</p> <p>Engine</p> <p>Engine Type<br>V4 60 deg. E-TEC DI</p> <p>Bore x Stroke<br>3.6 x 2.588 in. (91 x 66 mm)</p> <p>Displacement<br>105 cu.in. (1726 cc)</p> <p>Starting<br>Electric</p> <p>General</p> <p>Trim Method<br>Trac-1 Power Trim and Tilt</p> <p>Shaft Rotation</p> <p>Propshaft Horsepower<br>115 hp (86 kW)</p> <p>Full Throttle Operating Range<br>5500-6000 rpm</p> <p>Gear Ratio / Shift<br>2.44:1</p> <p>Fuel Induction<br>E-TEC DI w/ Stratified low RPM combustion mode</p> <p>Alternator<br>133 Amps Total Output/ 50 Amps Net Dedicated</p> <p>Cooling</p> <p>Steering<br>Remote</p> <p>Warranty<br>3-Year, Non-Declining</p>
