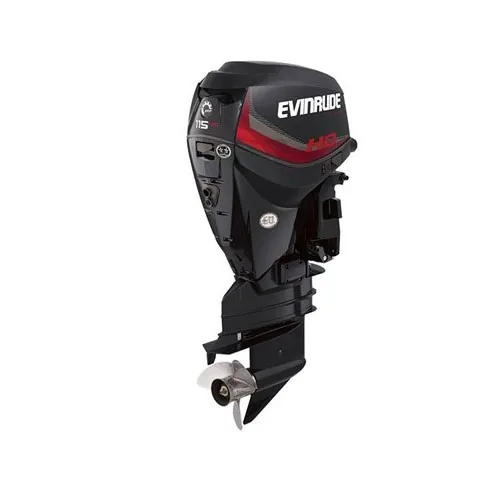

2016 EVINRUDE A115GHX E-TEC OUTBOARD MOTOR

2016 Evinrude A115GHX E-TEC Outboard Motor

The H.O. Series. Blurring the line between boating and aviation. Like pushing limits? Then take a closer look at our High Output Series. Because they push limits about as far as they can go – and come with everything it takes to handle it.

Specifications

Model: A115GHX

Weight: 405 lb. / 184 kg

Shaft Length: 25 in. / 635 mm

Color: Graphite

Gear Ratio: 2.44:1

Starting Method: Electric

Trim Method: Trac-1 Power Trim and Tilt

Steering: Remote

Limited Warranty: 3-Year, Non-Declining

Engine type: V4 60 deg. E-TEC DI

Displacement: 105 cu.in./1726 cc

Recommended fuel: 87 Octane

Emissions compliance: CARB 2 Star, U.S EPA

Recommended Oil: Evinrude/Johnson XD100™ Oil

Propshaft HP: 115 hp (86 kW) @ 5750 rpm

Full Throttle RPM Range: 5500-6000 rpm

Alternator output: 133 Amps Total Output/ 50 Amps Net Dedicated

Fuel induction: E-TEC DI w/ Stratified low RPM combustion mode

Lubrication: Multi-point, targeted oiling

Bore x Stroke: 3.6 x 2.588 in. / 91 x 66 mm

Year
2016

Manufacturer
Evinrude

Model
A115GHX – 115 HO Graphite, 25″ Shaft

Style
Outboard

Dimensions

Shaft Length
25 in. (635 mm)

Weight
405 lb. (184 kg)

Engine

Engine Type
V4 60 deg. E-TEC DI

Bore x Stroke
3.6 x 2.588 in. (91 x 66 mm)

Displacement
105 cu.in. (1726 cc)

Starting
Electric

General

Trim Method
Trac-1 Power Trim and Tilt

Shaft Rotation

Propshaft Horsepower
115 hp (86 kW)

Full Throttle Operating Range
5500-6000 rpm

Gear Ratio / Shift
2.44:1

Fuel Induction
E-TEC DI w/ Stratified low RPM combustion mode

Alternator
133 Amps Total Output/ 50 Amps Net Dedicated

Cooling

Steering
Remote

Warranty
3-Year, Non-Declining
