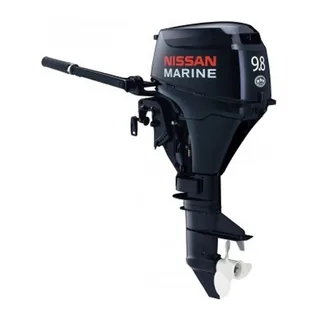

2015 NISSAN 9.8 HP NSF9.8A3EF1 OUTBOARD MOTOR

Nissan Marine Co. Ltd. of Japan has announced that certain segments of their marine business, including the production of the Nissan Marine brand of outboard engines, will be discontinued. Tohatsu is the manufacturer of all Nissan outboards They are identical with the exception of branding and brand label (decals). Nissan models are typically slightly higher in price as a result of the premium branding and offer slightly higher resale values. There is no difference in features, specifications, or warranty term. This decision by Nissan Marine in no way affects the production or sales of our Tohatsu brand. The Tohatsu Corporation is deeply committed to the North American market and will continue to strongly support the Tohatsu brand worldwide. Tohatsu will also continue to fully support all existing Nissan outboards in the marketplace.

MODEL NSF9.8A3EF1

MODEL YEAR 2015

SKU NSF9.8A3EF1-15

WEIGHT 88.2000

MANUFACTURER Nissan

HORSEPOWER 9.8hp

SHAFT LENGTH 15″ (Short)

STEERING Tiller

STARTING Electric

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 2

DISPLACEMENT 209 cc (12.8 cubic inches)

BORE AND STROKE 55 x 44 mm (2.17 x 1.73 inches)

FULL THROTTLE RPM RANGE 5,000-6,000 RPM

IGNITION SYSTEM Digital CD Ignition

INDUCTION SCAVENGING SOHC

VALVES PER CYLINDER 2

FUEL TYPE Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE 3.1 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ)

OIL CAPACITY 27 fl. oz. (800 ml)

LUBRICATION Wet Sump

ALTERNATOR 12V 80W 6A (standard on elec. start models)

COOLING SYSTEM Water-Cooled, Thermostatically Controlled

SALTWATER RATED Yes

GEAR RATIO 2.08:1

GEAR SHIFT Forward-Neutral-Reverse (front mount shifter)

PROPELLER 8.5″ Dia. X 8.0″ Pitch 3-Blade Aluminum

INTERNAL BATTERY No
