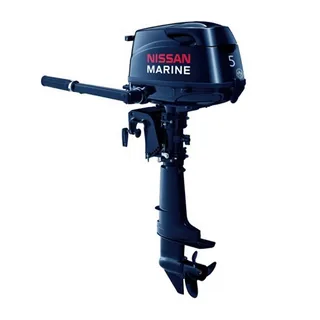

2015 NISSAN 5 HP NSF5C2 OUTBOARD MOTOR

Nissan Marine Co. Ltd. of Japan has announced that certain segments of their marine business, including the production of the Nissan Marine brand of outboard engines, will be discontinued. Tohatsu is the manufacturer of all Nissan outboards They are identical with the exception of branding and brand label (decals). Nissan models are typically slightly higher in price as a result of the premium branding and offer slightly higher resale values. There is no difference in features, specifications, or warranty term. This decision by Nissan Marine in no way affects the production or sales of our Tohatsu brand. The Tohatsu Corporation is deeply committed to the North American market and will continue to strongly support the Tohatsu brand worldwide. Tohatsu will also continue to fully support all existing Nissan outboards in the marketplace.

MODEL NSF5C2

MODEL YEAR 2015

SKU NSF5C2-15

WEIGHT 58.0000

MANUFACTURER Nissan

HORSEPOWER 5hp

SHAFT LENGTH 20″ (Long)

STEERING Tiller

STARTING Manual

TRIM & TILT Manual

FUEL DELIVERY Carburetor

FUEL TANK External

CYLINDER(S) 1

DISPLACEMENT 123 cc

BORE AND STROKE 59 x 45 mm

FULL THROTTLE RPM RANGE 4,500-5,500 RPM

IGNITION SYSTEM Digital CD Ignition

INDUCTION SCAVENGING OHV

VALVES PER CYLINDER 2

FUEL TYPE Unleaded Gasoline (87 octane)

FUEL TANK / FUEL LINE 3.1 Gal. Fuel Tank + Quick Connect Fuel Line

OIL TYPE SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ)

OIL CAPACITY 15 fl. oz.

LUBRICATION Wet Sump

ALTERNATOR Optional 12V 60W 5A (installation required)

COOLING SYSTEM SAE 10W-30 or SAE 10W-40 (SF, SG, SH, SJ)

SALTWATER RATED Yes

GEAR RATIO 2.15:1

GEAR SHIFT Forward-Neutral-Reverse (front mount shifter)

PROPELLER 7.7″ Dia. X 8.0″ Pitch 3-Blade Aluminum

INTERNAL BATTERY No
